Brennan 6901-12-12-NWO-FG

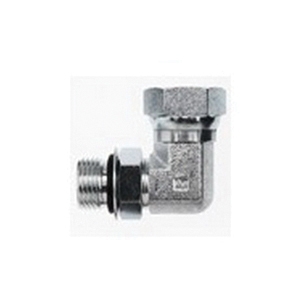

Brennan 6901-NWO-FG Forged Steel 90 deg Elbow, 3/4 in Male O-Ring Boss x 3/4 in Female NPSM

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 6901-12-12
  • MPN: 6901-12-12-NWO-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan 6901-NWO-FG Forged Steel 90 deg Elbow, Connection Size 1: 3/4 in, Gender 1: Male, Connection Type 1: O-Ring Boss x Connection Size 2: 3/4 in, Gender 2: Female, Connection Type 2: NPSM, 2250 psi

Series      :      6901-NWO-FG
Connection Size 1      :      3/4 in
Connection Size 2      :      3/4 in
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      3/4 in ORB
Shape      :      90° Elbow
Connection 2      :      3/4 in NPSM
Thread Size 1      :      1-1/16-12
Thread Size 2      :      3/4-14
Dimension Standards      :      SAE 140257
Fitting Type      :      90 deg Elbow
Hex Size      :      1-1/4 in
Material      :      Forged Steel
Pressure Rating      :      2250 psi
Connection Type 1      :      O-Ring Boss
Connection Type 2      :      NPSM
