Adaptall 5006S-12-08

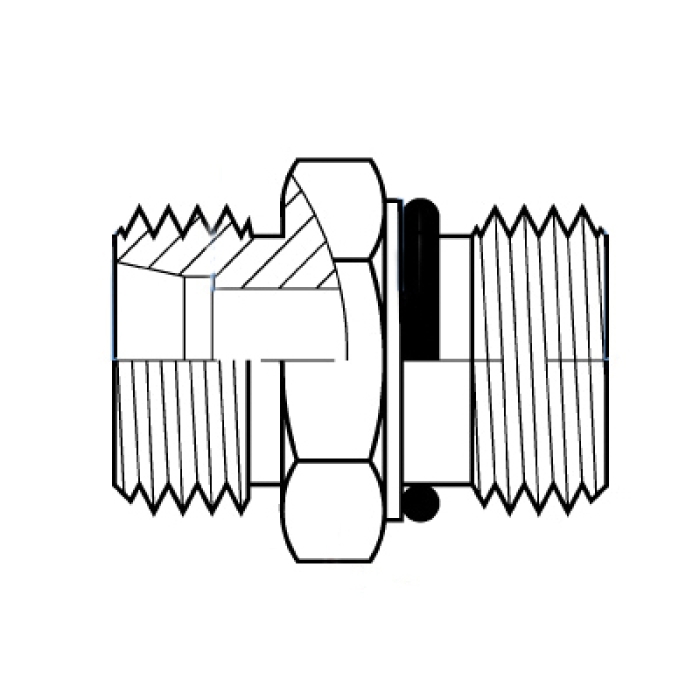

Adaptall 5006S Carbon Steel Straight Adapter, S12 Male Metric DIN 24° Tube x 1/2 in Male O-Ring Boss

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 5006S-12-08
  • MPN: 5006S-12-08
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 5006S Carbon Steel Straight Adapter, Connection Size 1: S12 , Gender 1: Male, Connection Type 1: Metric DIN 24° Tube x Connection Size 2: 1/2 in, Gender 2: Male, Connection Type 2: O-Ring Boss

Series      :      5006S
Connection Size 1      :      S12
Connection Size 2      :      1/2 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      12 mm Heavy
Shape      :      Straight
Connection 2      :      1/2 in ORB
Thread Size 1      :      M20 x 1.5
Thread Size 2      :      3/4-16
Dimension Standards      :      ISO 8434-1, DIN 2353, SAE J1926, ISO 11926
Length      :      36 mm
Fitting Type      :      Straight Adapter
Hex Size      :      24 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric DIN 24° Tube
Connection Type 2      :      O-Ring Boss
