Adaptall 5300S-08
Send Print
  1. pin-int

Adaptall 5300S-08

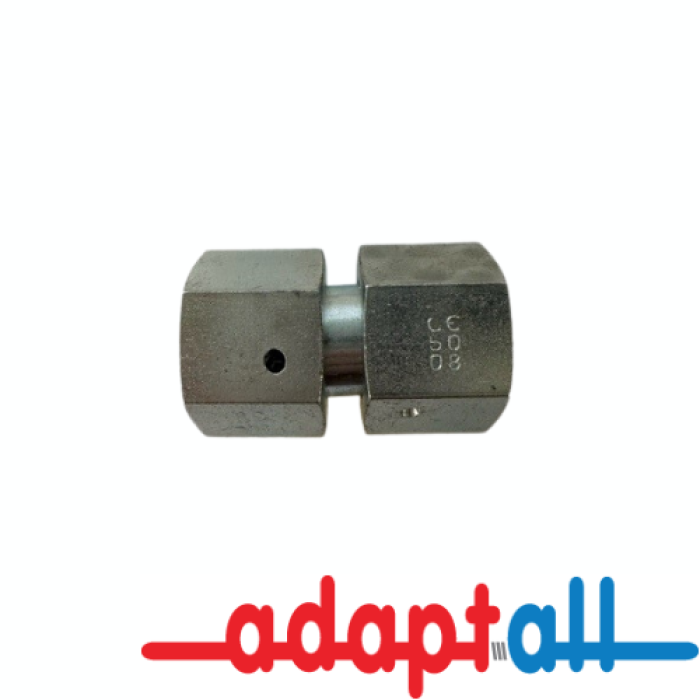

Adaptall 5300S Carbon Steel Union, S08 Female Metric DIN 24° Tube x S08 Female Metric DIN 24° Tube

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 5300S-08
  • MPN: 5300S-08
  • UPC: 5300S-008
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 5300S Carbon Steel Union, Connection Size 1: S08 , Gender 1: Female, Connection Type 1: Metric DIN 24° Tube x Connection Size 2: S08, Gender 2: Female, Connection Type 2: Metric DIN 24° Tube

Series      :      5300S
Connection Size 1      :      S08
Connection Size 2      :      S08
Gender 1      :      Female
Gender 2      :      Female
Connection 1      :      8 mm Heavy
Shape      :      Straight
Connection 2      :      8 mm Heavy
Thread Size 1      :      M16 x 1.5
Thread Size 2      :      M16 x 1.5
Dimension Standards      :      ISO 8434-1, DIN 2353
Length      :      73.1 mm
Fitting Type      :      Union
Hex Size      :      19 x 16 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric DIN 24° Tube
Connection Type 2      :      Metric DIN 24° Tube
