Adaptall 5307L-08-04

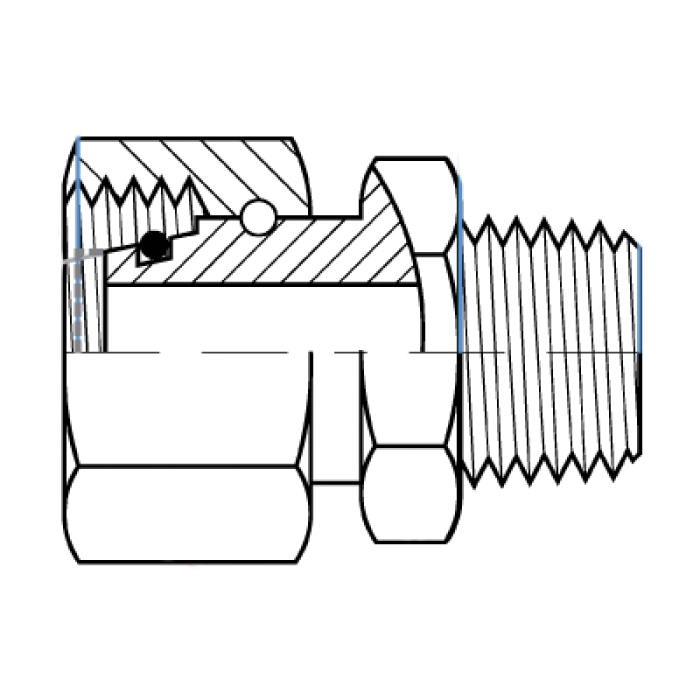

Adaptall 5307 Carbon Steel Light-Duty Straight Adapter, 8 mm Female DIN 24 deg Tube Swivel x 1/4 in MNPT

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 5307L-08-04
  • MPN: 5307L-08-04
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall Light-Duty Adapter, Series: 5307, Connection Type 1: DIN 24 deg Tube, Gender 1: Female, Connection Size 1: 8 mm, Thread Size 1: M14 x 1.5, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 14 x 17 mm, Carbon Steel, 41.5 mm Length, Dimension Standards: ANSI B1.20.3, DIN 2353, ISO 8434-1

Series      :      5307
Connection Size 1      :      8 mm
Connection Size 2      :      1/4 in
Gender 1      :      Female
Gender 2      :      Male
Connection 1      :      8 mm Metric
Shape      :      Straight
Connection 2      :      1/4 in NPT
Thread Size 1      :      M14 x 1.5
Thread Size 2      :      1/4-18
Dimension Standards      :      ANSI B1.20.3, DIN 2353, ISO 8434-1
Length      :      41.5 mm
Fitting Type      :      Straight Adapter
Hex Size      :      14 x 17 mm
Material      :      Carbon Steel
Connection Type 1      :      DIN 24 deg Tube Swivel
Connection Type 2      :      NPT
