Adaptall 6002-08-08

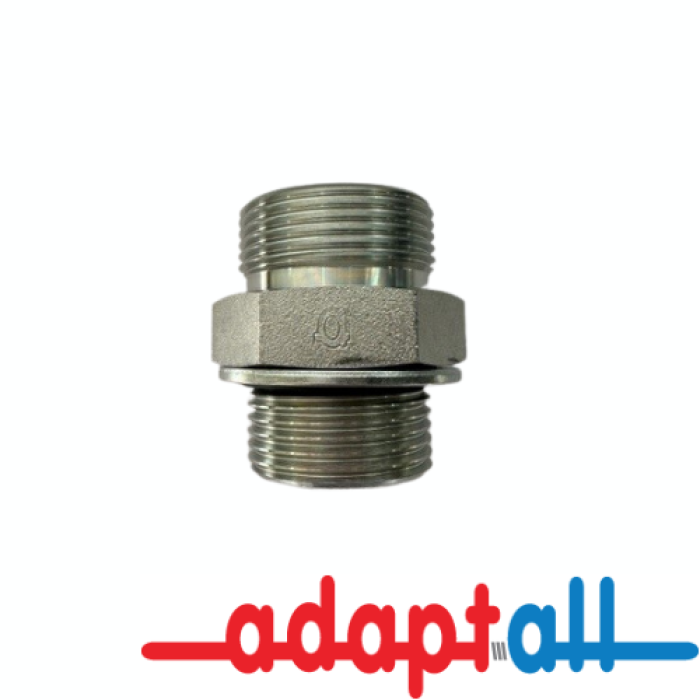

Adaptall 6002 Carbon Steel Straight Adapter, 1/2 in Male BSPP x 1/2 in Male O-Ring Face Seal

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 6002-08-08
  • MPN: 6002-08-08
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 6002 Carbon Steel Straight Adapter, Connection Size 1: 1/2 in, Gender 1: Male, Connection Type 1: BSPP x Connection Size 2: 1/2 in, Gender 2: Male, Connection Type 2: O-Ring Face Seal

Series      :      6002
Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      1/2 in BSPP
Shape      :      Straight
Connection 2      :      1/2 in ORFS
Thread Size 1      :      G 1/2-14
Thread Size 2      :      13/16-16
Dimension Standards      :      BS 5200, ISO 1179, ISO 8434-3, ISO 8434-6, SAE J1453
Length      :      37 mm
Fitting Type      :      Straight Adapter
Material      :      Carbon Steel
Connection Type 1      :      BSPP
Connection Type 2      :      O-Ring Face Seal
