Adaptall 9005ES-10-10 ADC 9005ES-10-10 | Tipco Technologies
Adaptall 9005ES-10-10
Send Print
  1. pin-int

Adaptall 9005ES-10-10

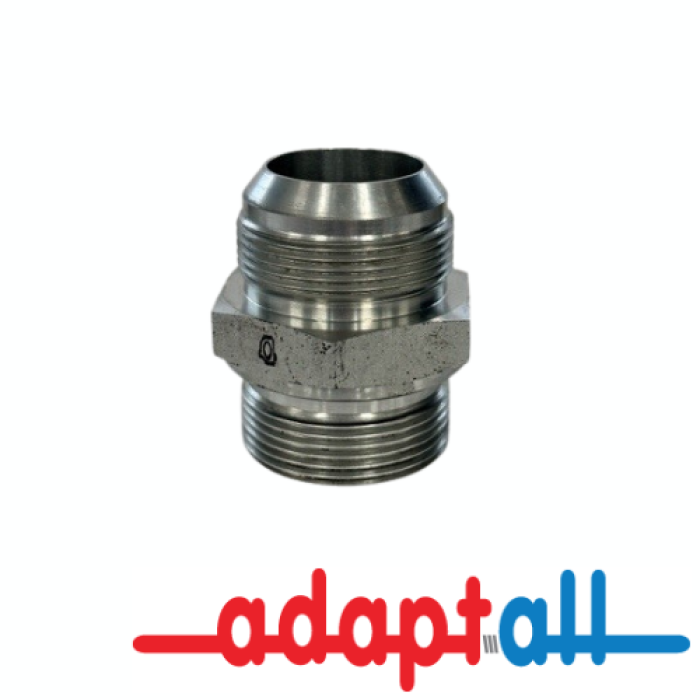

Adaptall 9005ES Carbon Steel Straight Adapter, 5/8 in Male BSPP x 5/8 in Male JIC

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9005ES-10-10
  • MPN: 9005ES-10-10
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 9005ES Carbon Steel Straight Adapter, Connection Size 1: 5/8 in, Gender 1: Male, Connection Type 1: BSPP x Connection Size 2: 5/8 in, Gender 2: Male, Connection Type 2: JIC

Series      :      9005ES
Connection Size 1      :      5/8 in
Connection Size 2      :      5/8 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      5/8 in BSPP
Shape      :      Straight
Connection 2      :      5/8 in JIC
Thread Size 1      :      G 5/8-14
Thread Size 2      :      7/8-14
Dimension Standards      :      BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Length      :      45.3 mm
Fitting Type      :      Straight Adapter
Hex Size      :      30 mm
Material      :      Carbon Steel
Connection Type 1      :      BSPP
Connection Type 2      :      JIC
