Adaptall 9230-06-18
Send Print
  1. pin-int

Adaptall 9230-06-18

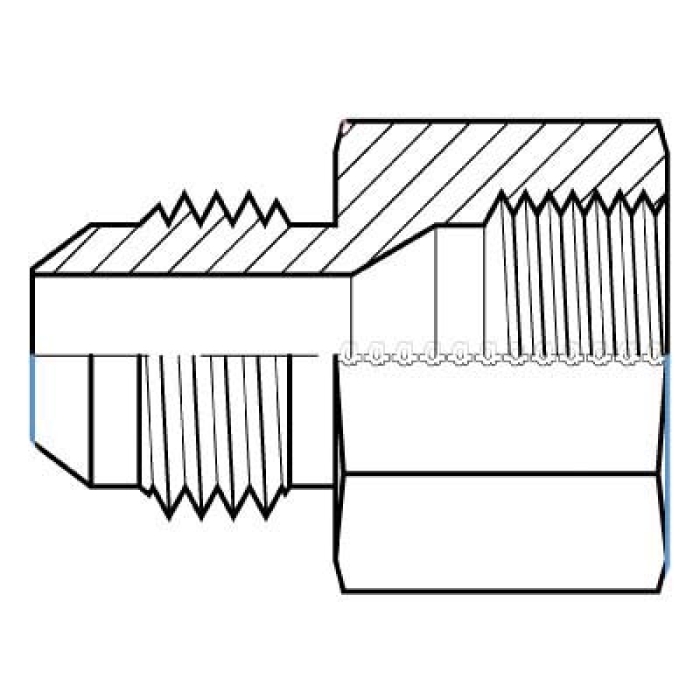

Adaptall 9230 Carbon Steel Solid Straight Adapter, 3/8 in Male JIC x 18 mm Female Komatsu

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9230-06-18
  • MPN: 9230-06-18
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall Solid Straight Adapter, Series: 9230, Connection Type 1: JIC, Gender 1: Male, Connection Size 1: 3/8 in, Thread Size 1: 9/16-18, Connection Type 2: Komatsu, Gender 2: Female, Connection Size 2: 18 mm, Thread Size 2: M18 x 1.5, Hex Size: 24 mm, Carbon Steel, 35.7 mm Length, Dimension Standards: ISO 261, ISO 8434-2, SAE J514

Series      :      9230
Connection Size 1      :      3/8 in
Connection Size 2      :      18 mm
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      3/8 in JIC
Shape      :      Straight
Connection 2      :      18 mm Komatsu
Thread Size 1      :      9/16-18
Thread Size 2      :      M18 x 1.5
Dimension Standards      :      ISO 261, ISO 8434-2, SAE J514
Length      :      35.7 mm
Fitting Type      :      Straight Adapter
Hex Size      :      24 mm
Material      :      Carbon Steel
Connection Type 1      :      JIC
Connection Type 2      :      Komatsu
