Adaptall 9235-22-08
Send Print
  1. pin-int

Adaptall 9235-22-08

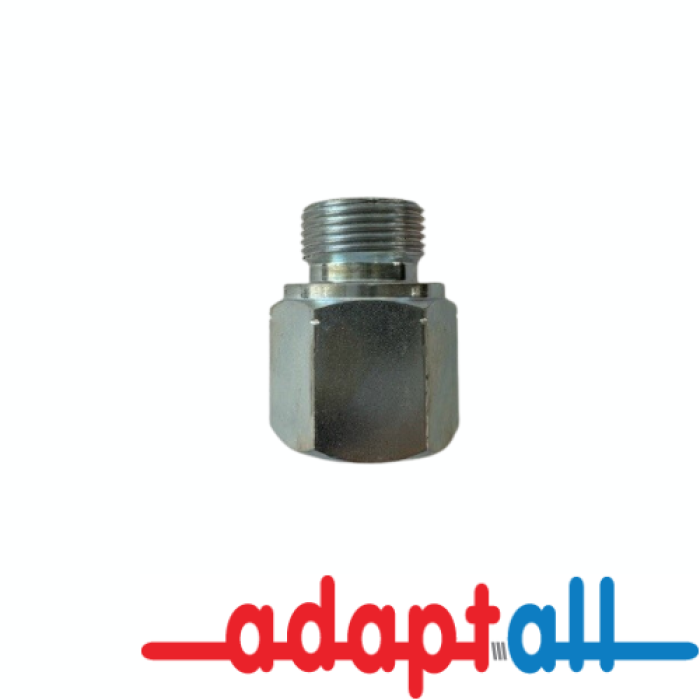

Adaptall 9235 Carbon Steel Straight Adapter, 22 mm Male Metric DIN 60° Flare x 1/2 in Female NPT

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9235-22-08
  • MPN: 9235-22-08
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 9235 Carbon Steel Straight Adapter, Connection Size 1: 22 mm, Gender 1: Male, Connection Type 1: Metric DIN 60° Flare x Connection Size 2: 1/2 in, Gender 2: Female, Connection Type 2: NPT

Series      :      9235
Connection Size 1      :      22 mm
Connection Size 2      :      1/2 in
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      22 mm Metric 60
Shape      :      Straight
Connection 2      :      1/2 in NPT
Thread Size 1      :      M22 x 1.5
Thread Size 2      :      1/2-14
Dimension Standards      :      ANSI B1.20.3, DIN 7631, ISO 6149, ISO 9974
Length      :      41.3 mm
Fitting Type      :      Straight Adapter
Hex Size      :      28.5 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric DIN 60° Flare
Connection Type 2      :      NPT
