Adaptall 9240-04-04
Send Print
  1. pin-int

Adaptall 9240-04-04

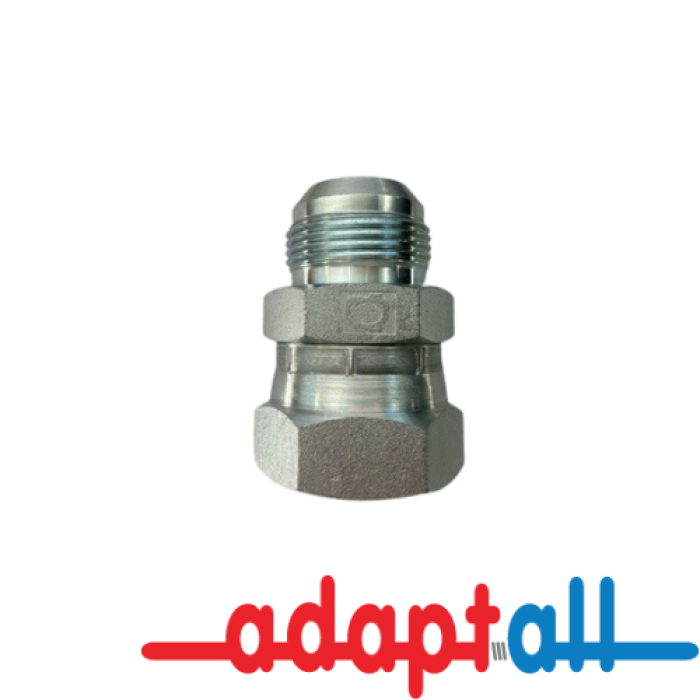

Adaptall 9240 Carbon Steel Straight Adapter, 1/4 in Female BSPP x 1/4 in Male JIC

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9240-04-04
  • MPN: 9240-04-04
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall 9240 Carbon Steel Straight Adapter, Connection Size 1: 1/4 in, Gender 1: Female, Connection Type 1: BSPP x Connection Size 2: 1/4 in, Gender 2: Male, Connection Type 2: JIC

Series      :      9240
Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Gender 1      :      Female
Gender 2      :      Male
Connection 1      :      1/4 in BSPP
Shape      :      Straight
Connection 2      :      1/4 in JIC
Thread Size 1      :      G 1/4-19
Thread Size 2      :      7/16-20
Dimension Standards      :      BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Length      :      35.9 mm
Fitting Type      :      Straight Adapter
Hex Size      :      17 x 19 mm
Material      :      Carbon Steel
Connection Type 1      :      BSPP
Connection Type 2      :      JIC
