Brennan FS6403-04-04
Send Print
  1. pin-int

Brennan FS6403-04-04

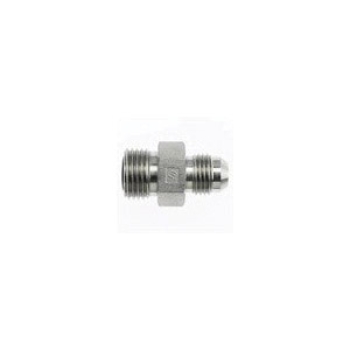

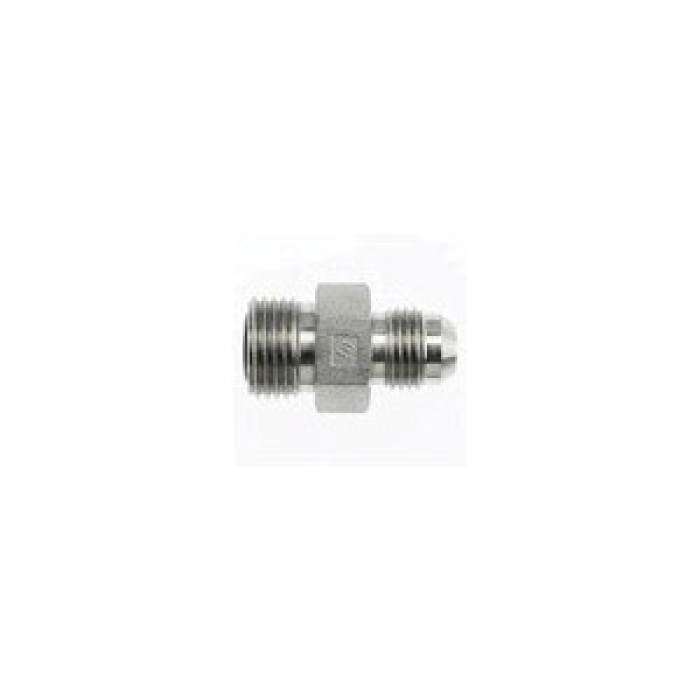

Brennan FS6403 Steel Straight Adapter, 1/4 in Male O-Ring Face Seal x 1/4 in Male JIC

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA FS6403-04-04
  • MPN: FS6403-04-04
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan FS6403 Steel Straight Adapter, Connection Size 1: 1/4 in, Gender 1: Male, Connection Type 1: O-Ring Face Seal x Connection Size 2: 1/4 in, Gender 2: Male, Connection Type 2: JIC, 7500 psi

California residents see Prop 65 WARNINGS

Series      :      FS6403
Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      1/4 in ORFS
Shape      :      Straight
Connection 2      :      1/4 in JIC
Thread Size 1      :      9/16-18
Thread Size 2      :      7/16-20
Length      :      1-1/4 in
Fitting Type      :      Straight Adapter
Hex Size      :      5/8 in
Material      :      Steel
Pressure Rating      :      7500 psi
Connection Type 1      :      O-Ring Face Seal
Connection Type 2      :      JIC
