Aeroquip® FJ3249-0606S

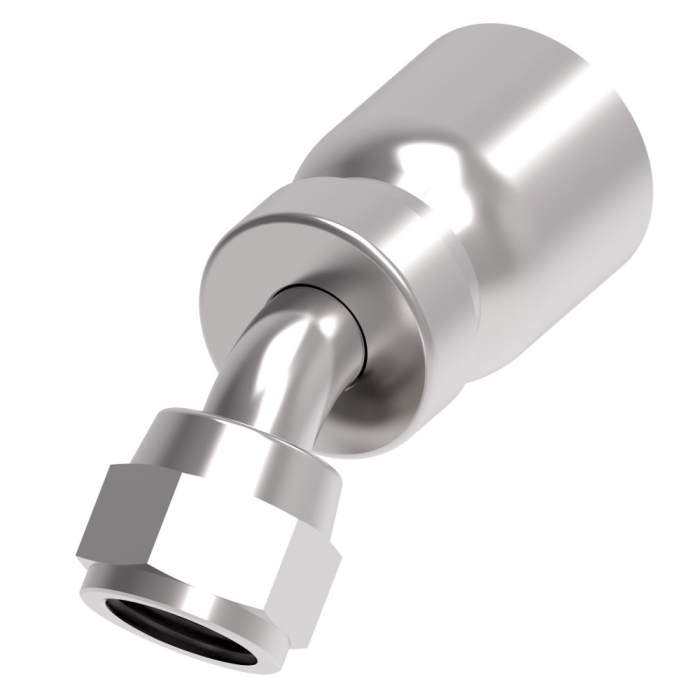

Aeroquip® FJ3249 Dura-Kote Carbon Steel Female SAE 37 deg JIC Swivel 100R5 Crimp Hose 45 deg Elbow, 3/8 in
- Manufacturers: Danfoss
- Brand Name: Aeroquip®
- Tipco Part No: AER FJ3249-0606S
- MPN: FJ3249-0606S
- UPC: 678146148100
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Aeroquip® 100R5 Crimp Hose 45 deg Elbow, FJ3249 Series, Hose Connection: 3/8 in, Connection Type 1: Hose, Connection Size 1: 3/8 in, Hose Dash Size: 06, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: 9/16-18, Hex Size: 0.6875 in, Cut-Off Factor: 1.15 in, Carbon Steel, Finish: Dura-Kote, For Use With: H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 & -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949 Series Hoses, Dimensions: 2.65 in L x 0.6875 in W x 1.51 in H
| Hose Connection | : | 3/8 in |
| Gender 2 | : | Female |
| Connection Size 2 | : | 3/8 in |
| Nominal Size | : | 3/8 in |
| Thread Size 2 | : | 9/16-18 |
| Hex Size | : | 0.6875 in |
| Cut-Off Factor | : | 1.15 in |
| Material | : | Carbon Steel |
| Finish | : | Dura-Kote |
| For Use With | : | H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 & -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949 Series Hoses |
| Fitting Type | : | 45 deg Elbow |
| Dimensions | : | 2.65 in L x 0.6875 in W x 1.51 in H |
| Series | : | FJ3249 |
| Connection Type 1 | : | Hose |
| Connection Size 1 | : | 3/8 in |
| Hose Dash Size | : | 06 |
| Connection 2 | : | 3/8 in JIC Swivel |
| Connection Type 2 | : | SAE 37 deg JIC Swivel |
Catalog/Catalog Cut Sheet
