Aeroquip® 90302-045400-0
Send Print
  1. pin-int

Aeroquip® 90302-045400-0

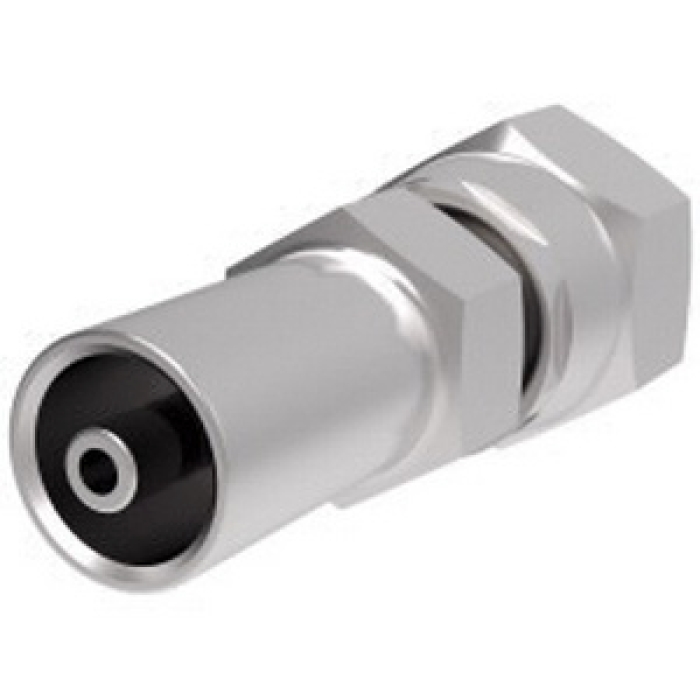

Aeroquip® 903 Plated Steel Female SAE 37 deg JIC Swivel Permanent Swage Straight Hose Fitting, 1/8 x 1/4 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 4TA4FJ2
  • MPN: 90302-045400-0
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Permanent Swage Straight Hose Fitting, 903 Series, Hose Connection: 1/8 in, Connection Type 1: Hose, Connection Size 1: 1/8 in, Hose Dash Size: 02, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1/4 in, Nominal Size: 1/4 in, Thread Size 2: 7/16-20, Hex Size: 1/2 x 5/8 in, Cut-Off Factor: 1.06 in, Steel, Finish: Plated, For Use With: 3R30, 3130, 3740, 37AL, 3580, 25CT, 30CT, 3800, and Thermoplastic SAE 100R7 and 100R18 Hoses, Dimensions: 1.703 in L

Hose Connection      :      1/8 in
Gender 2      :      Female
Connection Size 2      :      1/4 in
Nominal Size      :      1/4 in
Thread Size 2      :      7/16-20
Hex Size      :      1/2 x 5/8 in
Cut-Off Factor      :      1.06 in
Material      :      Steel
Finish      :      Plated
For Use With      :      3R30, 3130, 3740, 37AL, 3580, 25CT, 30CT, 3800, and Thermoplastic SAE 100R7 and 100R18 Hoses
Series      :      903
Dimensions      :      1.703 in L
Fitting Type      :      Straight Hose Fitting
Connection Type 1      :      Hose
Connection Size 1      :      1/8 in
Hose Dash Size      :      02
Connection 2      :      1/4 in JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel
  • Permanently attached, plated steel, medium pressure hose end type

Applications: Ball mill, concrete pump, continuous miner, exploration drill rig, foundry casting, reclaimer and skid steer loader
