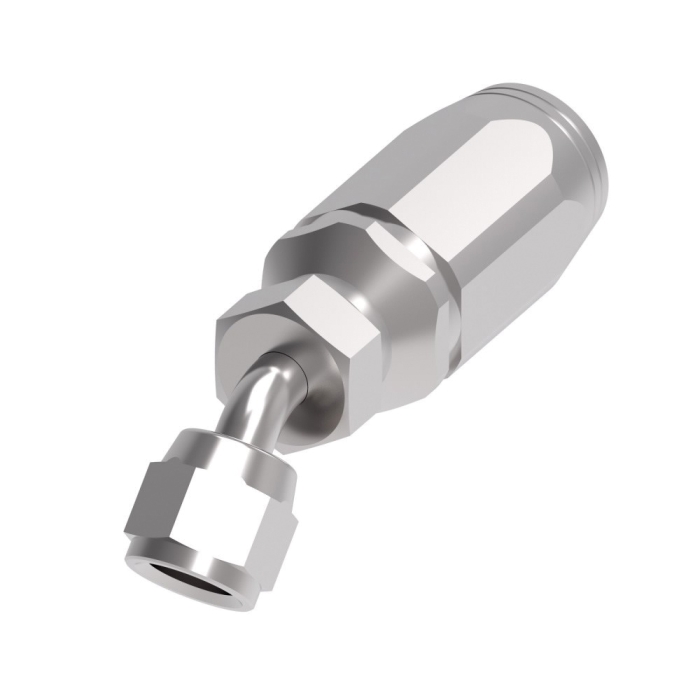

Aeroquip® Reusable Hose 45 deg Elbow, 2R Series, Hose Connection: 3/8 in, Connection Type 1: Hose, Connection Size 1: 3/8 in, Hose Dash Size: 06, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: 9/16-18, Hex Size: 0.69 x 1 in, Cut-Off Factor: 1.48 in, Carbon Steel, Finish: Zinc-Plated, For Use With: GH781 and EC215 Series Hoses, Dimensions: 3.16 in L x 1 in W x 1.24 in H
| Fitting Type | : | 45 deg Elbow |
| Gender 2 | : | Female |
| Connection Size 2 | : | 3/8 in |
| Nominal Size | : | 3/8 in |
| Thread Size 2 | : | 9/16-18 |
| Hex Size | : | 0.69 x 1 in |
| Cut-Off Factor | : | 1.48 in |
| Material | : | Carbon Steel |
| Finish | : | Zinc-Plated |
| For Use With | : | GH781 and EC215 Series Hoses |
| Series | : | 2R |
| Dimensions | : | 3.16 in L x 1 in W x 1.24 in H |
| Hose Connection | : | 3/8 in |
| Connection Type 1 | : | Hose |
| Connection Size 1 | : | 3/8 in |
| Hose Dash Size | : | 06 |
| Connection 2 | : | 3/8 in JIC Swivel |
| Connection Type 2 | : | SAE 37 deg JIC Swivel |
