Aeroquip® FC9155-4040S
Send Print
  1. pin-int

Aeroquip® FC9155-4040S

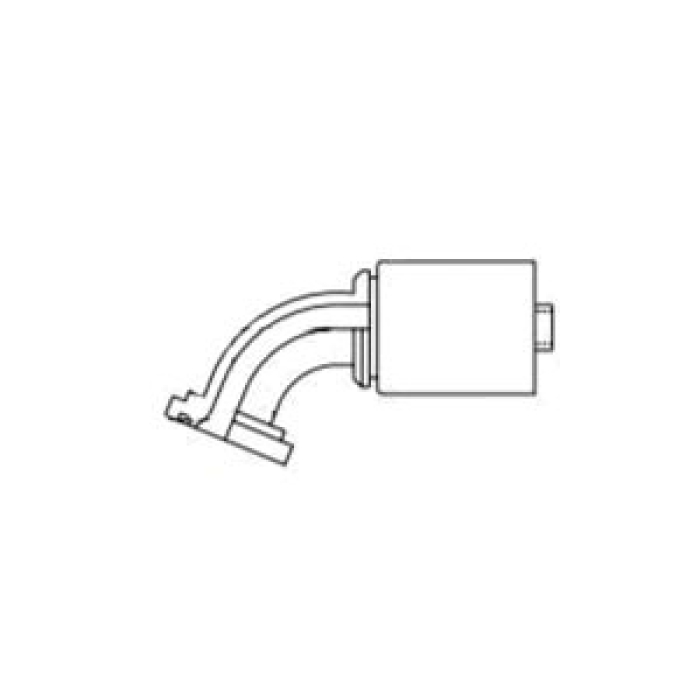

Aeroquip® FC9155 Dura-Kote Carbon Steel Female SAE Code 61 Flange Reusable Hose 45 deg Elbow, 2-1/2 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FC9155-4040S
  • MPN: FC9155-4040S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Reusable Hose 45 deg Elbow, FC9155 Series, Hose Connection: 2-1/2 in, Connection Type 1: Hose, Connection Size 1: 2-1/2 in, Hose Dash Size: 40, Connection Type 2: SAE Code 61 Flange, Gender 2: Female, Connection Size 2: 2-1/2 in, Cut-Off Factor: 4.18 in, Carbon Steel, Finish: Dura-Kote, For Use With: 2661 and FC619 Series Hoses, Dimensions: 8.54 in L x 3.31 in W x 3.31 in H

Fitting Type      :      45 deg Elbow
Gender 2      :      Female
Connection Size 2      :      2-1/2 in
Cut-Off Factor      :      4.18 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      2661 and FC619 Series Hoses
Series      :      FC9155
Dimensions      :      8.54 in L x 3.31 in W x 3.31 in H
Hose Connection      :      2-1/2 in
Connection Type 1      :      Hose
Connection Size 1      :      2-1/2 in
Hose Dash Size      :      40
Connection 2      :      2-1/2 in Code 61
Connection Type 2      :      SAE Code 61 Flange
