Dixon® H3F3-S

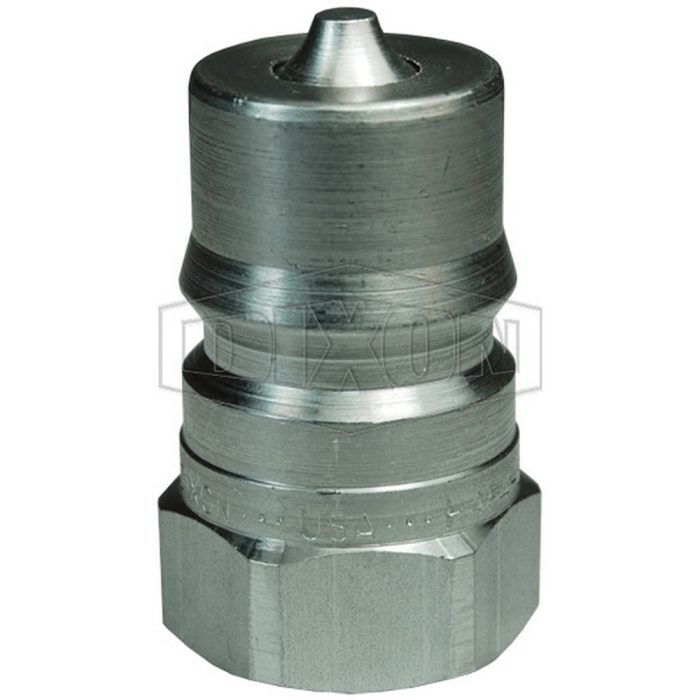

Dixon® H Series 303 Stainless Steel ISO-B Interchange Plug, 3/8 in Quick Disconnect x 3/8 in FNPTF

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN H3F3-S
  • MPN: H3F3-S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® ISO-B Interchange Plug, H Series, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, Hex Size: 7/8 in, 3500 psi, 303 Stainless Steel, Dimensions: 0.97 in OD x 1.7 in L, Dimension Standards: ISO 7241 Series B, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      3/8 in
Thread Size 2      :      3/8-18
Hex Size      :      7/8 in
Pressure Rating      :      3500 psi
Material      :      303 Stainless Steel
Dimensions      :      0.97 in OD x 1.7 in L
Dimension Standards      :      ISO 7241 Series B
Series      :      H
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      3/8 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      3/8 in
Connection 2      :      3/8 in NPT
Connection Type 2      :      NPTF
  • Poppet style shut-off valves
  • Designed to prevent fluid loss when disconnected
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72 Series, Hansen HK Series, Faster HNV Series, Aeroquip/Eaton FD45, Stucchi® Series IRB/IRBO/IRBX
