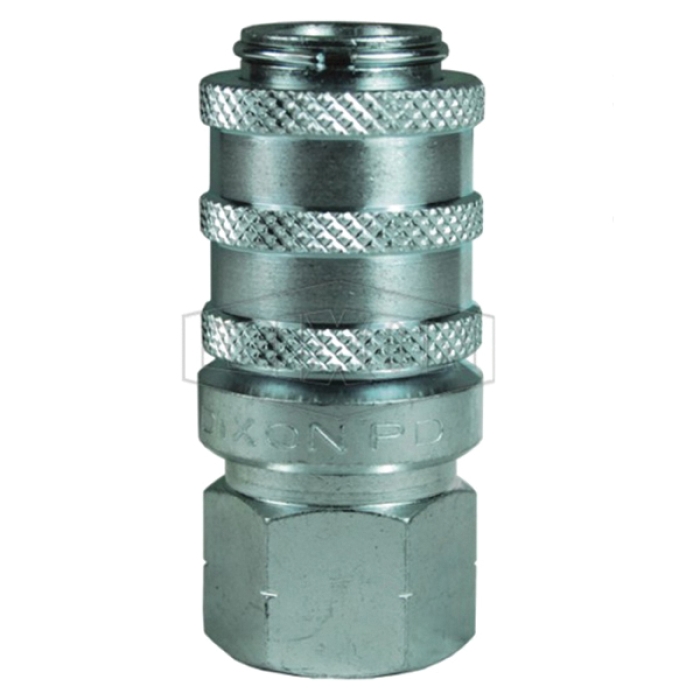

Dixon® Diagnostic Coupler, PD Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/8 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 21 mm, 6000 psi, Steel, Finish: Trivalent Chrome-Plated, Dimensions: 2.13 in L, -40 to 250 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Coupler |
| Gender 2 | : | Female |
| Connection Size 2 | : | 1/4 in |
| Thread Size 2 | : | 1/4-18 |
| Hex Size | : | 21 mm |
| Pressure Rating | : | 6000 psi |
| Material | : | Steel |
| Finish | : | Trivalent Chrome-Plated |
| Dimensions | : | 2.13 in L |
| Series | : | PD |
| Temperature Rating | : | -40 to 250 deg F |
| Connection 1 | : | 1/8 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Connection Size 1 | : | 1/8 in |
| Connection 2 | : | 1/4 in NPT |
| Connection Type 2 | : | NPT |
- Machined components are manufactured using solid bar stock
- Stainless steel springs, carbon steel balls and retaining rings
- Steel componentry is plated using RoHS compliant trivalent chrome
- Nitrile(Buna-N) seals are standard
- PTFE anti-extrusion ring protects main coupling O-ring from dynamic impulse pressure damage
- Interchangeable to ISO 15171-1
- Parker® PD Series, Aeroquip®FD90
- 18700 psi burst pressure
