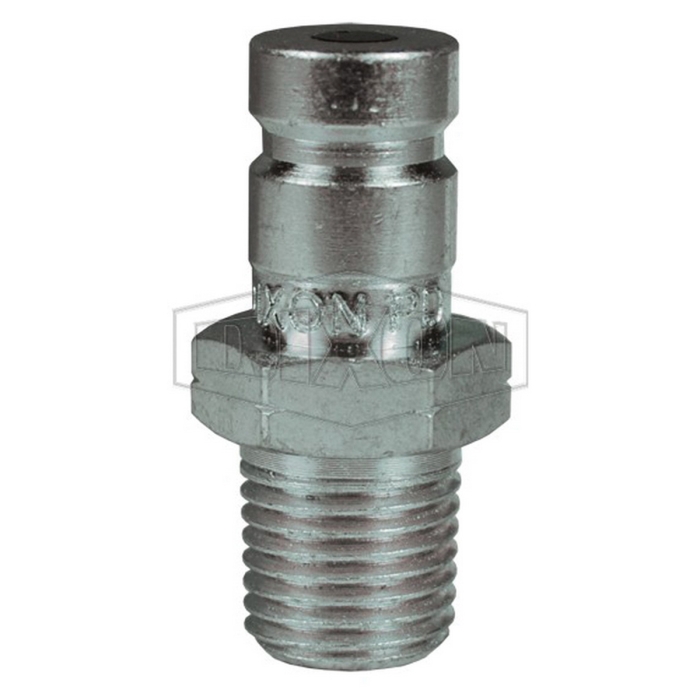

Dixon® Diagnostic Plug, PD Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/8 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1/8 in, Thread Size 2: 1/8-27, Hex Size: 17 mm, 6000 psi, Steel, Finish: Trivalent Chrome-Plated, Dimensions: 0.76 in Dia x 1.98 in L, -40 to 250 deg F, For Use With: PD Series Quick Disconnect Diagnostic Interchange Hydraulic Couplings
California residents see Prop 65 WARNINGS
| Fitting Type | : | Plug |
| Gender 2 | : | Male |
| Connection Size 2 | : | 1/8 in |
| Thread Size 2 | : | 1/8-27 |
| Hex Size | : | 17 mm |
| Pressure Rating | : | 6000 psi |
| Material | : | Steel |
| Finish | : | Trivalent Chrome-Plated |
| Dimensions | : | 0.76 in Dia x 1.98 in L |
| Series | : | PD |
| Temperature Rating | : | -40 to 250 deg F |
| For Use With | : | PD Series Quick Disconnect Diagnostic Interchange Hydraulic Couplings |
| Connection 1 | : | 1/8 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Connection Size 1 | : | 1/8 in |
| Connection 2 | : | 1/8 in NPT |
| Connection Type 2 | : | NPT |
- Machined components are manufactured using solid bar stock
- Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
- Steel componentry is plated using RoHS compliant trivalent chrome
- Steel nipples are hardened to provide heavy-duty performance and resist brinelling
