Dixon® T3F3-PV

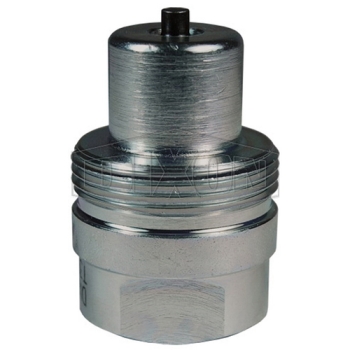

Dixon® T Series Trivalent Chrome-Plated Steel High-Pressure Poppet Plug, 3/8 in Quick Disconnect x 3/8 in FNPTF

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN T3F3-PV
  • MPN: T3F3-PV
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® High-Pressure Poppet Plug, T Series, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, Hex Size: 15/16 in, 10000 psi, Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.19 in OD x 1.53 in L, -40 to 250 deg F, For Use With: T-Series Quick Disconnect Hydraulic Coupling

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      3/8 in
Thread Size 2      :      3/8-18
Hex Size      :      15/16 in
Pressure Rating      :      10000 psi
Material      :      Steel
Finish      :      Trivalent Chrome-Plated
Dimensions      :      1.19 in OD x 1.53 in L
Series      :      T
Temperature Rating      :      -40 to 250 deg F
For Use With      :      T-Series Quick Disconnect Hydraulic Coupling
Connection 1      :      3/8 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      3/8 in
Connection 2      :      3/8 in NPT
Connection Type 2      :      NPTF
  • Steel nipples are machined using solid high-strength steel bar stock
  • Chrome steel ball valve is mechanically seated to improve low pressure sealing performance
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Polyurethane seals
  • High pressure screw together interchange
  • Parker® 3000 Series
  • Enerpac C604
  • Interchangeable to ISO 14540

Applications: For high pressure applications including hydraulic rams and pumps where low flow and pressures up to 10000 psi are encountered
