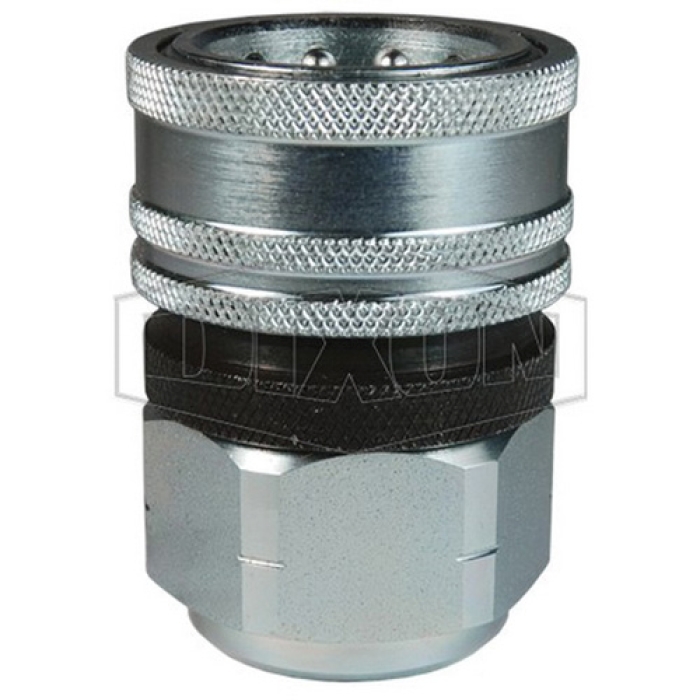

Dixon® Tema European Interchange Valved Coupler, TR Series, Connection Type 1: Quick Disconnect, Connection Size 1: 3/4 in, Connection Type 2: BSPP, Gender 2: Female, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, 4000 psi, Steel, Finish: Trivalent Chrome-Plated, Dimensions: 2.05 in OD x 3.35 in L, -40 to 250 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Coupler |
| Gender 2 | : | Female |
| Connection Size 2 | : | 3/4 in |
| Thread Size 2 | : | 3/4-14 |
| Pressure Rating | : | 4000 psi |
| Material | : | Steel |
| Finish | : | Trivalent Chrome-Plated |
| Dimensions | : | 2.05 in OD x 3.35 in L |
| Series | : | TR |
| Temperature Rating | : | -40 to 250 deg F |
| Connection 1 | : | 3/4 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Connection Size 1 | : | 3/4 in |
| Connection 2 | : | 3/4 in BSPP |
| Connection Type 2 | : | BSPP |
- Machined components are manufactured using solid bar stock
- Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
- Steel componentry is plated using RoHS compliant trivalent chrome
- Steel coupler sleeves are hardened to resist deformation and maximize service life
- Nitrile (Buna-N) seals are standard
- Couplers have a redundant O-ring sealing system (dual O-rings with inner PTFE back-up ring)
- Valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection
- Style valved
- TEMA European interchange, TEMA 3800, 5000, 7500, 10000 Series, CEJN Series 525
