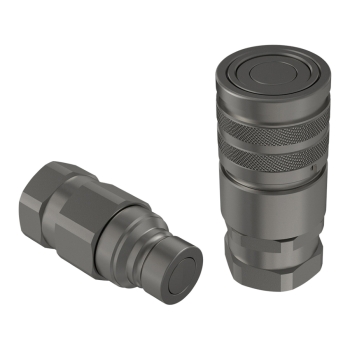

Faster Flat Face Coupling, Series: FFH, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 3/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/4 in, Hex Size: 1.65 in, 5076.321 psi, Steel, Dimensions: 1.89 in Dia x 3.95 in L, Dimension Standards: ANSI B1.20.3, -13 to 212 deg F
| Fitting Type | : | Coupling |
| Gender 2 | : | Female |
| Connection Size 2 | : | 3/4 in |
| Hex Size | : | 1.65 in |
| Pressure Rating | : | 5076.321 psi |
| Material | : | Steel |
| Dimensions | : | 1.89 in Dia x 3.95 in L |
| Dimension Standards | : | ANSI B1.20.3 |
| Series | : | FFH |
| Temperature Rating | : | -13 to 212 deg F |
| Connection 1 | : | 3/4 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Gender 1 | : | Female |
| Connection Size 1 | : | 3/4 in |
| Connection 2 | : | 3/4 in NPT |
| Connection Type 2 | : | NPTF |
Flat-face couplings with real maximum working pressure of 35 MPa and zinc-nickel plating. Flat valve shut-off system contributes to prevent contamination and spillage. ISO 16028 interchange.
Applications: For hydromill trench cutters, hydraulic diamond saw systems, compact wheel loaders, boom drilling equipment for mining-tunneling, crawler cranes, heavy-duty modular vehicles, optical fiber cable blowing machine, mold and die industry, coiled tubing units, power beyond rear attachments, power steering industry, portable well drilling machines, roadheader machines, snow plows, hydraulically extendable undercarriage and mini dumpers
Specification Sheet
