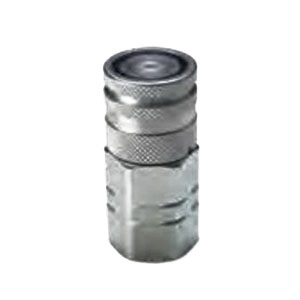

Stucchi Flat Face Coupling, A-HD Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/2 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/2 in, 4785 psi, Carbon Steel, Dimension Standards: ISO 16028
| Fitting Type | : | Coupling |
| Gender 2 | : | Female |
| Connection Size 2 | : | 1/2 in |
| Pressure Rating | : | 4785 psi |
| Material | : | Carbon Steel |
| Dimension Standards | : | ISO 16028 |
| Series | : | A-HD |
| Connection 1 | : | 1/2 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Gender 1 | : | Female |
| Connection Size 1 | : | 1/2 in |
| Connection 2 | : | 1/2 in NPT |
| Connection Type 2 | : | NPT |
The A-HD Series flat face couplings address residual pressure in a circuit, anywhere thermal expansion of trapped fluid causes pressure to develop. They connect by hand with residual pressure, without releasing any fluid into the environment, due to an internal valving system.
- Connect under pressure, by hand
- Flat face design eliminates leakage and contamination in the circuit
- Black ID ring
Applications: For mobile, oil and gas, industrial, agricultural
