Stucchi® 803304004

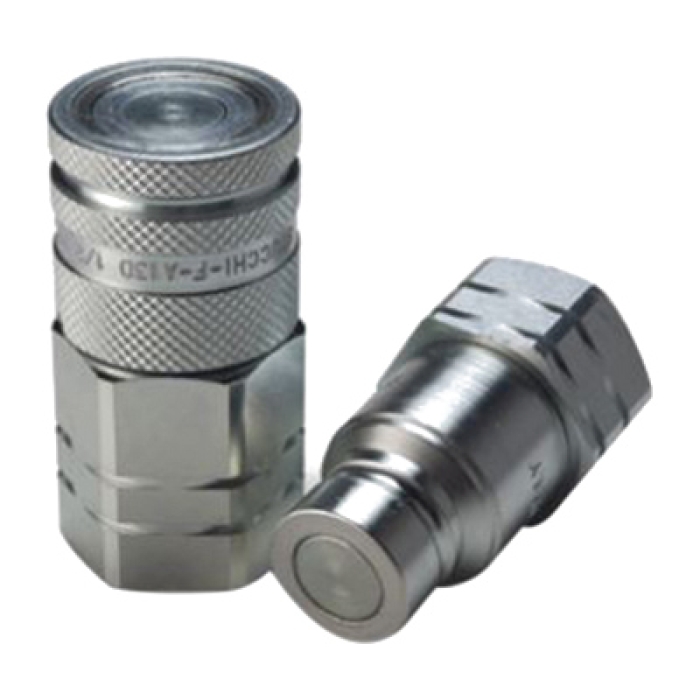

Stucchi® A Premier Carbon Steel Flat Face Interchange Coupler, 1/2 in Quick Disconnect x 1/2 in Female SAE Threaded

  • Manufacturers: Stucchi USA
  • Brand Name: Stucchi®
  • Tipco Part No: STU 803304004
  • MPN: 803304004
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Stucchi® Flat Face Interchange Coupler, Series: A Premier, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: SAE Threaded, Gender 2: Female, Connection Size 2: 1/2 in, Hex Size: 1.42 in, 4785 psi, Carbon Steel, Dimensions: 3.02 in L x 1.5 in W, Dimension Standards: ISO 16028

Fitting Type      :      Coupler
Gender 2      :      Female
Connection Size 2      :      1/2 in
Hex Size      :      1.42 in
Pressure Rating      :      4785 psi
Material      :      Carbon Steel
Dimensions      :      3.02 in L x 1.5 in W
Dimension Standards      :      ISO 16028
Series      :      A Premier
Connection 1      :      1/2 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1/2 in
Connection 2      :      1/2 in Threaded
Connection Type 2      :      SAE Threaded

The A Premier Series flat face ISO 16028 interchange couplings offer higher pressure ratings, superior flow characteristics and lower pressure drops compared to FIRG Series or competitors products. Specifically designed for applications needing no-leak performance and the ideal solution for limiting contamination in hydraulic circuits, the non-spill design avoids fluid loss during connection and disconnection.

  • Lock system stops unwanted disconnect
  • Modular structure for multiple port option
  • Hardened steel, 12 - 20 balls reduce brinelling
  • Specifically designed for applications needing no-leak performance
  • Ideal for limiting contamination in hydraulic circuit
  • NBR seal
  • Flat face is easy to clean, reducing the inclusion of contamination inside the hydraulic circuit
  • Minimal fluid loss during disconnection, reducing fluid loss to the environment
  • Minimal air inclusion during connection/disconnection
  • Patented internal valve design creates minimal pressure drop, maintaining circuit efficiency in the system
  • The modular design allows flexibility with a wide range of configurations
  • Good resistance at impulse pressures
  • Compact slim design
  • Safe and simple to use

Applications: For applications involving high-pressure impulses in agriculture equipment, mobile construction equipment, oil, gas exploration and general industrial plants
