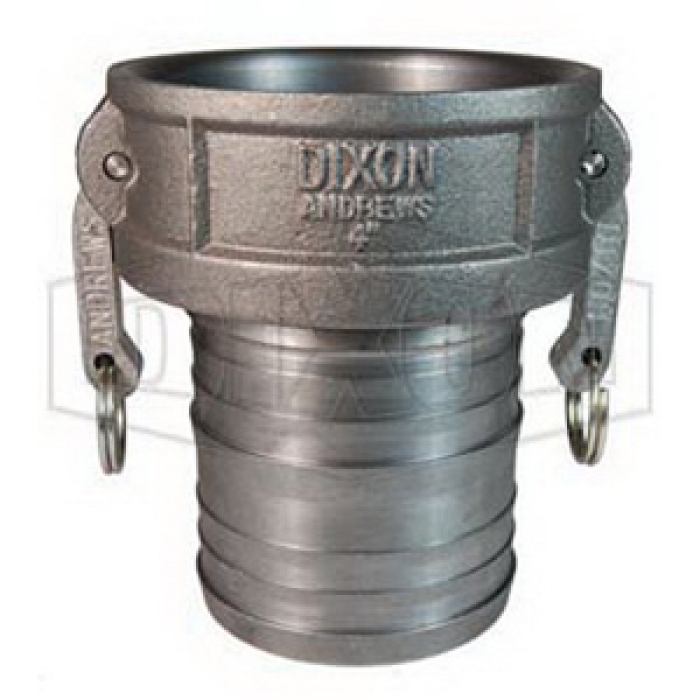

Dixon® Cam and Groove Type C Coupler, Connection Type 1: Fitting, Gender 1: Female, Connection Size 1: 3 in, Connection Type 2: Hose Stem, Connection Size 2: 3 in, 125 psi, Ductile Iron, Finish: Unplated, Dimensions: 4-1/4 in Dia x 6-3/8 in L, For Use With: King Crimp™ Sleeves and Ferrules
California residents see Prop 65 WARNINGS
| Fitting Shape | : | Type C |
| Connection Size 1 | : | 3 in |
| Connection Size 2 | : | 3 in |
| Pressure Rating | : | 125 psi |
| Material | : | Ductile Iron |
| Finish | : | Unplated |
| Dimensions | : | 4-1/4 in Dia x 6-3/8 in L |
| Fitting Type | : | Coupler |
| For Use With | : | King Crimp™ Sleeves and Ferrules |
| Connection 1 | : | 3 in Fitting |
| Connection 2 | : | 3 in Hose Stem |
| Connection Type 1 | : | Fitting |
| Connection Type 2 | : | Hose Stem |
| Gender 1 | : | Female |
- Precision machined to rigid tolerances
- Stainless pins will not rust or bind, providing great strength and safety
- Recess holds gasket firmly in place ensures proper placement
- Long shank design allows proper banding, thus eliminating the major cause of hose damage
- Buna-N gasket
- Durable stainless steel cam arm pins
- Supplied with safety clips
- Produced to interchange with all product produced to commercial item description A-A-59326D
Applications: For use with liquids
Safety Notes:
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg with a standard seal installed.
- For use at elevated temperature or other unusual operating conditions, consult the factory.
- Only use the crimp style shanks with the crimp style sleeves and ferrules.
- Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon® products.
