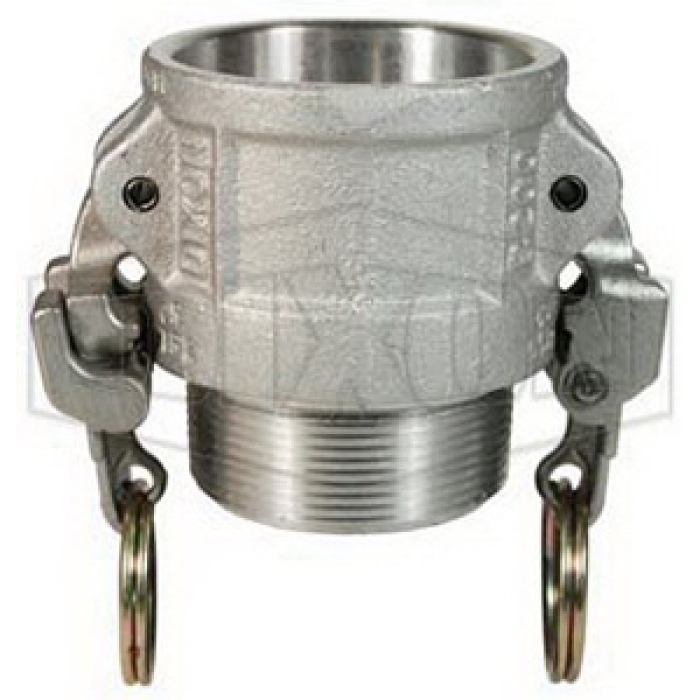

Dixon® EZ Boss-Lock™ Cam and Groove Type B Coupler, Connection Type 1: Fitting, Gender 1: Female, Connection Size 1: 3 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 3 in, Thread Size 2: 3-8, 125 psi, Aluminum, Dimensions: 4 in L
California residents see Prop 65 WARNINGS
| Fitting Shape | : | Type B |
| Connection Size 1 | : | 3 in |
| Connection Size 2 | : | 3 in |
| Thread Size 2 | : | 3-8 |
| Pressure Rating | : | 125 psi |
| Material | : | Aluminum |
| Dimensions | : | 4 in L |
| Fitting Type | : | Coupler |
| Connection 1 | : | 3 in Fitting |
| Connection 2 | : | 3 in NPT |
| Connection Type 1 | : | Fitting |
| Connection Type 2 | : | NPT |
| Gender 1 | : | Female |
| Gender 2 | : | Male |
- Resistant to accidental disconnection when dragged, the release lever opens in the direction opposite to the cam arm, so movements that tend to open the release lever also tend to close the cam arm
- Rotating action helps keep the locking device free of debris
- Designed to protect critical parts from impact and to withstand rugged use
- Buna-N gasket
- Produced to interchange with all product produced to commercial item description A-A-59326D
- 356T6 aluminum construction
Applications: For use with liquids
Safety Notes:
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Under no circumstances should the EZ Boss-Lock™ cam arms be used on any fitting not specifically designed for their use.
- Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
- For use at elevated temperature or other unusual operating conditions, consult Dixon®.
