Dixon® G300-E-SS DXN G300-E-SS | Tipco Technologies
Dixon® G300-E-SS
Send Print
  1. pin-int

Dixon® G300-E-SS

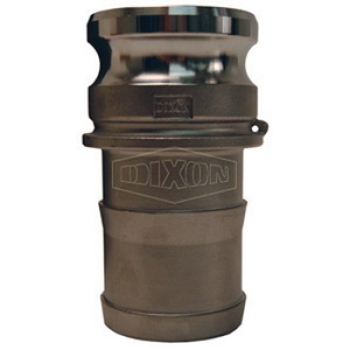

Dixon® G300-E-SS 316 Stainless Steel Global Cam and Groove Type E Adapter, 3 in Male Adapter x 3 in Hose Shank

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN G300-E-SS
  • MPN: G300-E-SS
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Global Cam and Groove Type E Adapter, Connection Type 1: Fitting, Gender 1: Male, Connection Size 1: 3 in, Connection Type 2: Hose Stem, Connection Size 2: 3 in, 125 psi, 316 Stainless Steel, Dimensions: 6-5/32 in L x 3-19/32 in W

California residents see Prop 65 WARNINGS

Fitting Shape      :      Type E
Connection Size 1      :      3 in
Connection Size 2      :      3 in
Pressure Rating      :      125 psi
Material      :      316 Stainless Steel
Dimensions      :      6-5/32 in L x 3-19/32 in W
Fitting Type      :      Adapter
Connection 1      :      3 in Fitting
Connection 2      :      3 in Hose Stem
Connection Type 1      :      Fitting
Connection Type 2      :      Hose Stem
Gender 1      :      Male
  • Designed to interchange with all products produced to A-A-59326D

Applications: For use with liquids

Safety Notes:

  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
  • For use at elevated temperature or other unusual operating conditions, consult Dixon®.
