Dixon® HU602100

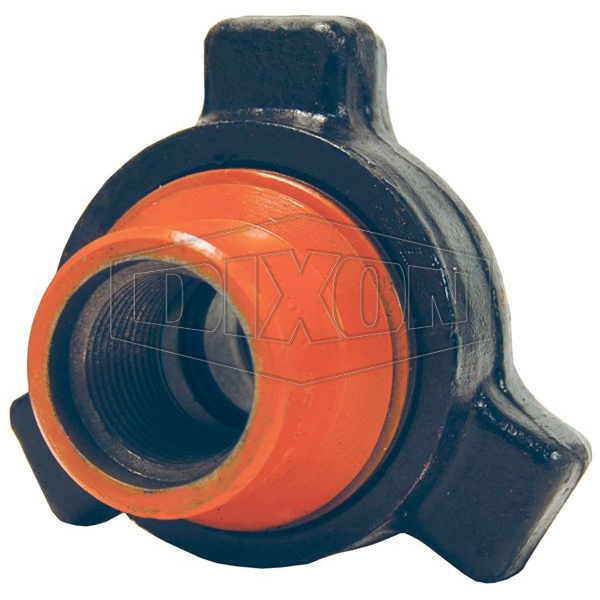

Dixon® 602 Forged Steel Hammer Union, 1 in FNPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN HU602100VI
  • MPN: HU602100
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Hammer Union, 602 Series, Connection Type 1: NPT, Gender 1: Female, Connection Size 1: 1 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1 in, 6000 psi, Forged Steel, Dimensions: 4-7/16 in Dia x 3-1/2 in L, -20 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Hammer Union
Series      :      602
Connection 1      :      1 in NPT
Connection 2      :      1 in NPT
Connection Type 1      :      NPT
Connection Type 2      :      NPT
Gender 1      :      Female
Gender 2      :      Female
Connection Size 1      :      1 in
Connection Size 2      :      1 in
Pressure Rating      :      6000 psi
Material      :      Forged Steel
Dimensions      :      4-7/16 in Dia x 3-1/2 in L
Temperature Rating      :      -20 to 250 deg F
  • Lip type seal ring minimizes fluid flow turbulence while creating a pressure seal

Applications: For use in mud, manifold service and truck mounting applications running water, oil or mud up to 6000 psi NSCWP

Safety Notes:

  • Hammer unions work at extremely high pressures.
  • Mismatching components of one series with another (i.e. series 602 with series 1502) can lead to destruction of property, serious bodily injury or death.
  • Pressure rating given at ambient temperature 70 deg F.
