Dixon® STC3035

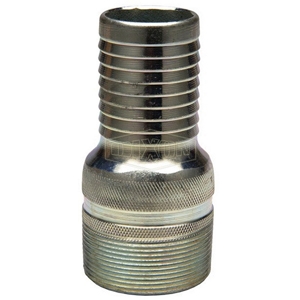

Dixon® King™ STC3035 Plated Steel Jump Size Combination Nipple, 2-1/2 in Hose Shank x 3 in MNPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN STC3035
  • MPN: STC3035
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® King™ Jump Size Combination Nipple, Connection Type 1: Hose Stem, Connection Size 1: 2-1/2 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 3 in, Steel, Finish: Plated, 5-3/4 in Length

California residents see Prop 65 WARNINGS

Fitting Type      :      Nipple
Connection 1      :      2-1/2 in Hose Stem
Connection Size 1      :      2-1/2 in
Connection Type 1      :      Hose Stem
Connection 2      :      3 in NPT
Connection Size 2      :      3 in
Connection Type 2      :      NPT
Gender 2      :      Male
Material      :      Steel
Finish      :      Plated

Applications: For low-pressure discharge and suction service for compatible liquids

Safety Notes:

  • King combination nipples are not recommended for steam.
  • The working pressure may vary with the construction of the hose, the type of clamping system used and the application.
  • Consult Dixon® for recommendations.
  • In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for 15 min without leaking or coupling movement.
  • For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.
