Aeroquip® 02A HSN 02A | Tipco Technologies
Aeroquip® 02A
Send Print
  1. pin-int

Aeroquip® 02A

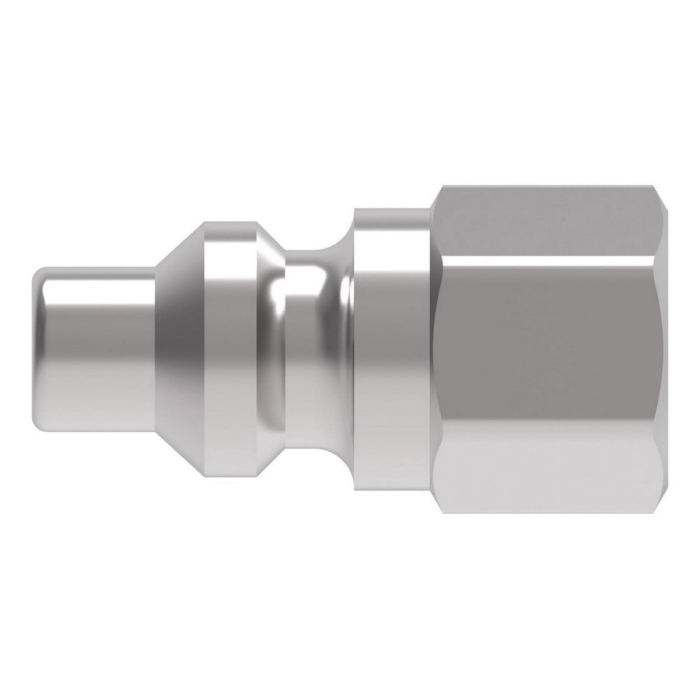

Aeroquip® 600 Brass Coupling Plug, 1/4 in Male Quick Disconnect x 1/4 in FNPTF

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN 02A
  • MPN: 02A
  • UPC: 678146164131
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling Plug, 600 Series, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 0.69 in, 1500 psi, Brass, Dimensions: 1.63 in L x 0.79 in W, -40 to 250 deg F

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      1/4 in
Thread Size 2      :      1/4-18
Hex Size      :      0.69 in
Pressure Rating      :      1500 psi
Material      :      Brass
Dimensions      :      1.63 in L x 0.79 in W
Series      :      600
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Male
Connection Size 1      :      1/4 in
Connection 2      :      1/4 in NPT
Connection Type 2      :      NPTF

Danfoss's 600 Series quick connect couplings are designed for use in oxyacetylene service. The 600/700 series can also be used with compressed air and other gases.

  • Safety sleeve lock prevents accidental disconnection
  • Non-interchangeable design prevents crossing of lines
  • Color-coded sleeves for easy identification
  • Buna-N seal material

Applications: Breathing equipment, welding, shipyards, general pneumatic, construction, nitrous oxide
