Aeroquip® Coupling, 600 Series, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/4 in, Connection Type 2: Threaded, Gender 2: Female, Connection Size 2: 9/16 in, Thread Size 2: 9/16-18, Hex Size: 0.69 in, 1500 psi, Brass, Green, Dimensions: 1.38 in L x 0.77 in W x 0.77 in H, -40 to 250 deg F
| Fitting Type | : | Coupling |
| Gender 2 | : | Female |
| Connection Size 2 | : | 9/16 in |
| Thread Size 2 | : | 9/16-18 |
| Hex Size | : | 0.69 in |
| Pressure Rating | : | 1500 psi |
| Material | : | Brass |
| Color | : | Green |
| Dimensions | : | 1.38 in L x 0.77 in W x 0.77 in H |
| Series | : | 600 |
| Temperature Rating | : | -40 to 250 deg F |
| Connection 1 | : | 1/4 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Gender 1 | : | Male |
| Connection Size 1 | : | 1/4 in |
| Connection 2 | : | 9/16 in Threaded |
| Connection Type 2 | : | Threaded |

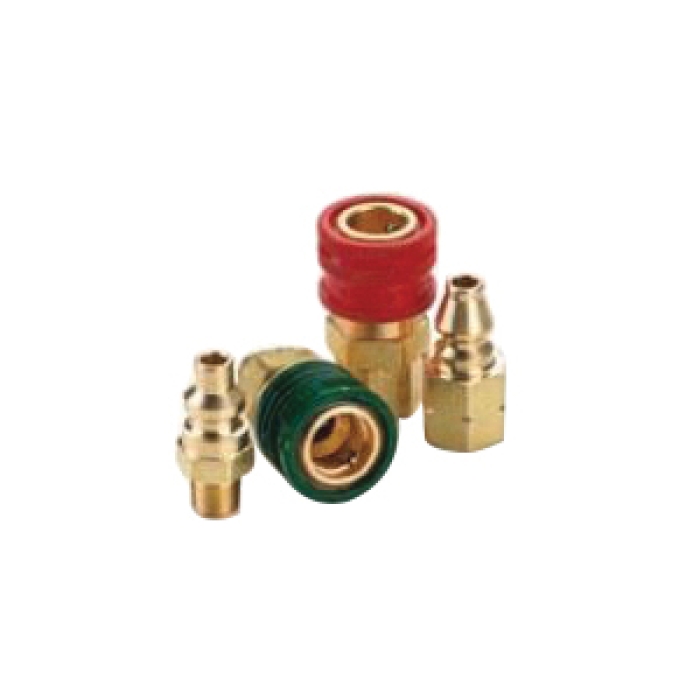

Danfoss 600 Series quick connect couplings are designed for use in oxyacetylene service. The 600 series can also be used with compressed air and other gases.
- Safety sleeve lock prevents accidental disconnection
- Non-interchangeable design prevents crossing of lines
- Color-coded sleeves for easy identification
- Designed for use with compressed air and other gases
Applications: Breathing equipment, welding, shipyards, general pneumatic, construction, nitrous oxide
Catalog/Catalog Cut Sheet
