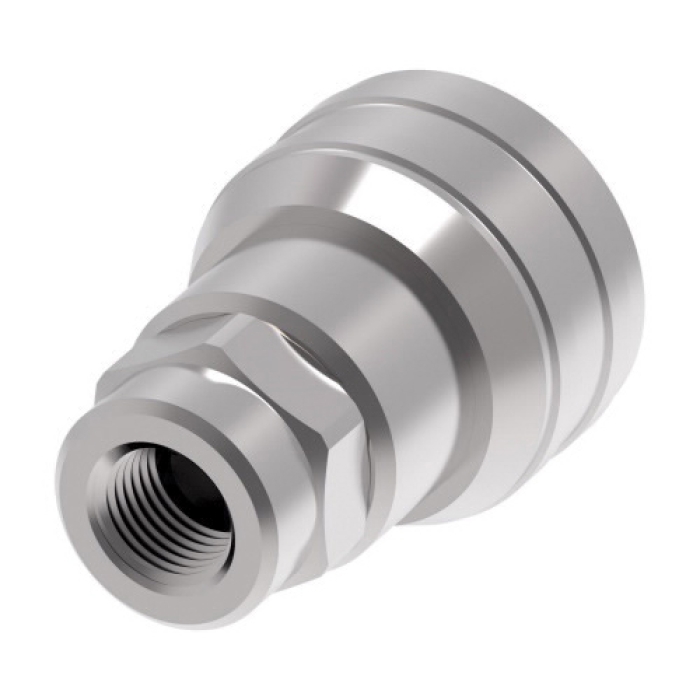

Aeroquip® Coupling, 6000 Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 3/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, Hex Size: 1.31 in, 220 psi, Brass, Dimensions: 3 in L x 1.9 in W x 1.9 in H, Dimension Standards: ISO 6150 Series B, -40 to 250 deg F, For Use With: Compressed Air, Gas, and Liquid
| Fitting Type | : | Coupling |
| Gender 2 | : | Female |
| Connection Size 2 | : | 3/4 in |
| Thread Size 2 | : | 3/4-14 |
| Hex Size | : | 1.31 in |
| Pressure Rating | : | 220 psi |
| Material | : | Brass |
| Dimensions | : | 3 in L x 1.9 in W x 1.9 in H |
| Dimension Standards | : | ISO 6150 Series B |
| Series | : | 6000 |
| Temperature Rating | : | -40 to 250 deg F |
| For Use With | : | Compressed Air, Gas, and Liquid |
| Connection 1 | : | 3/4 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Gender 1 | : | Female |
| Connection Size 1 | : | 3/4 in |
| Connection 2 | : | 3/4 in NPT |
| Connection Type 2 | : | NPTF |
Danfoss's 6000 Series industrial interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids. This Series sets the industry standard for pin lock style pneumatic couplings.
- Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line
- All sizes accept US industrial Interchange 1/4 and 1/2 in also accept ISO 6150 Series B and A-A-59439 plugs/males
- Buna-N seal material
Applications: Fluid transfer, general pneumatics, industrial breathing air, maintenance and repair
