Dixon® 2CJF2-B
Send Print
  1. pin-int

Dixon® 2CJF2-B

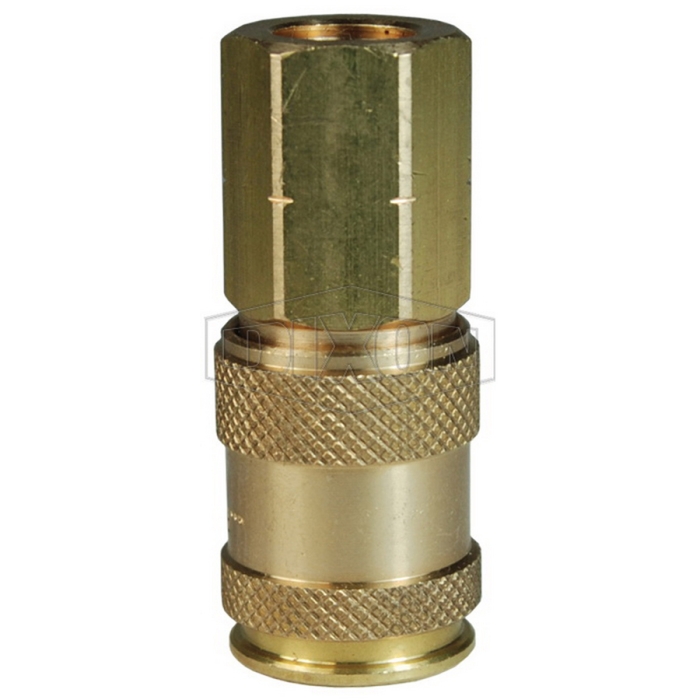

Dixon® CJ Series Brass Pneumatic Industrial Interchange Coupler, 1/4 in Quick Disconnect x 1/4 in FNPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 2CJF2-B
  • MPN: 2CJF2-B
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Pneumatic Industrial Interchange Coupler, CJ Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 3/4 in, Brass, Dimensions: 0.92 in OD x 2.32 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Coupler
Gender 2      :      Female
Connection Size 2      :      1/4 in
Thread Size 2      :      1/4-18
Hex Size      :      3/4 in
Material      :      Brass
Dimensions      :      0.92 in OD x 2.32 in L
Series      :      CJ
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1/4 in
Connection 2      :      1/4 in NPT
Connection Type 2      :      NPT
  • Machined components are manufactured using solid brass bar stock
  • Stainless steel springs, carbon steel balls and retaining rings
  • Nitrile (Buna-N) seals are standard
  • European high-flow interchange
  • Interchanges with CEJN 320, Coilhouse Megaflow, Rectus 25KA/26KA and other like designs

Safety Notes:

  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.
  • Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
  • To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
