Dixon® DC624

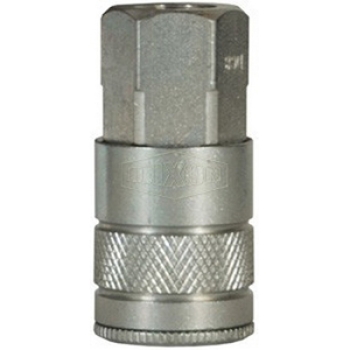

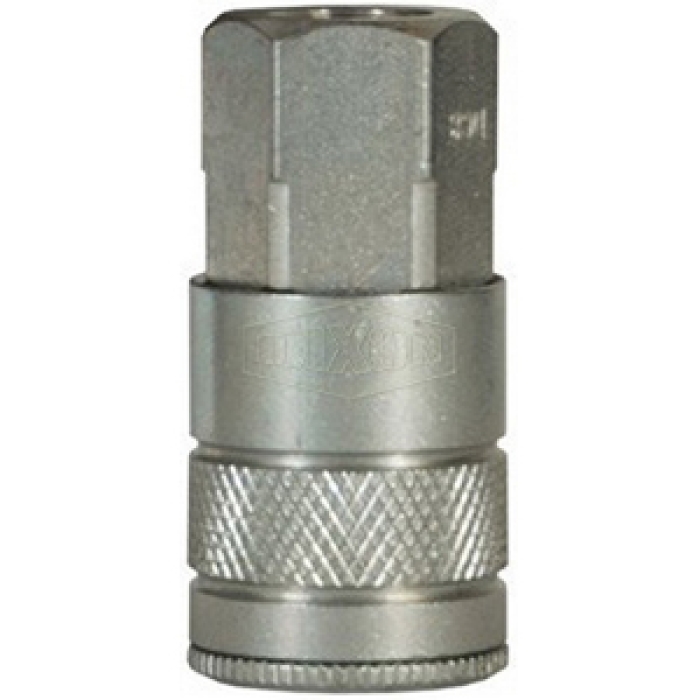

Dixon® DC624 Steel Air Chief Automotive Coupler, 3/8 in Quick Disconnect x 1/2 in FNPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN DC624
  • MPN: DC624
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Air Chief Automotive Coupler, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/2 in, Hex Size: 1/2 in, 300 psi, Steel, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Coupler
Gender 2      :      Female
Connection Size 2      :      1/2 in
Hex Size      :      1/2 in
Pressure Rating      :      300 psi
Material      :      Steel
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      3/8 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      3/8 in
Connection 2      :      1/2 in NPT
Connection Type 2      :      NPT
  • Semi automatic- pull sleeve to connect
  • Couplers shut-off when disconnected
  • Air chief automotive quick-connect couplers will interchange with the popular makes of automotive quick-connect fittings such as Amflo, Dill, Milton and Truflate
