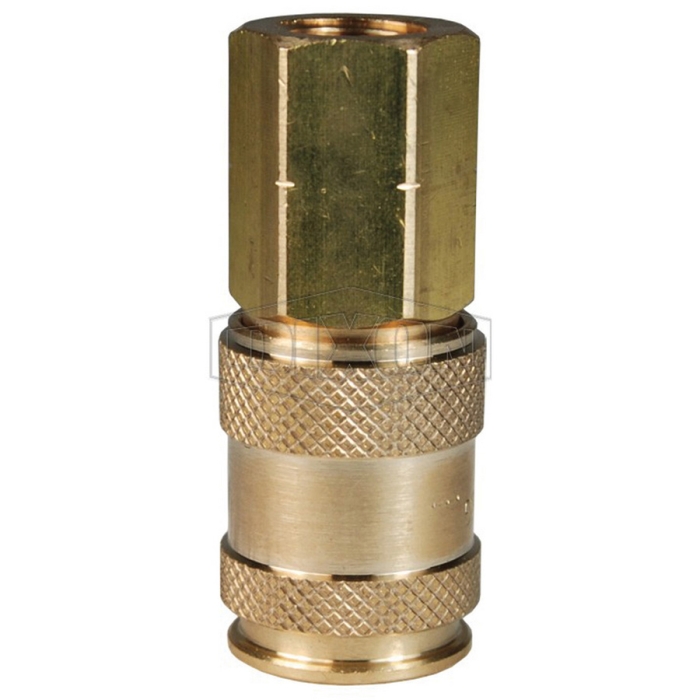

Dixon® 2UF2-B

Dixon® Universal Pneumatic Coupler, U Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/4 in, Hex Size: 3/4 in, 300 psi, Brass, Dimensions: 0.92 in OD x 2.32 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

• Machined components are manufactured using solid bar stock
• Stainless steel springs, carbon steel balls and retaining rings
• Valve components are machined from solid brass bar stock
• Nitrile (Buna-N) seals are standard
• 2U Series 6-in-1 (ARO 210, industrial, Truflate, Lincoln, Italian and CEJN 320)
• Parker® UC Series, Hansen Auto-Flo 23 and Coilhose Series UC

Safety Notes:

• It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.
• Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
• To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
• Many competitive universal couplings are unable to match the performance capabilities of the Dixon® U series.
• Although the universal coupler permits multiple series nipples to mate with one coupler, it is recommended to match like series couplers and nipples.
• When using a universal coupler, the lower performance rating between the coupler and the nipple must take precedence.
• Dry air: some pneumatic applications require the pressurized air to be dried to ensure proper operation of equipment and application of product.
• It is best to match like series couplers and nipples in these applications.
• If it is necessary to use a universal coupler, lube the seal and valve area regularly to ensure reliable service.

• Product Cross Ref https://dixonvalve.com/en/knowledge-center/product-cross-reference
• Catalog/Catalog Cut Sheet https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2US2-B_CAT.pdf
• Specification Sheet https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2US2-B_SS.pdf
