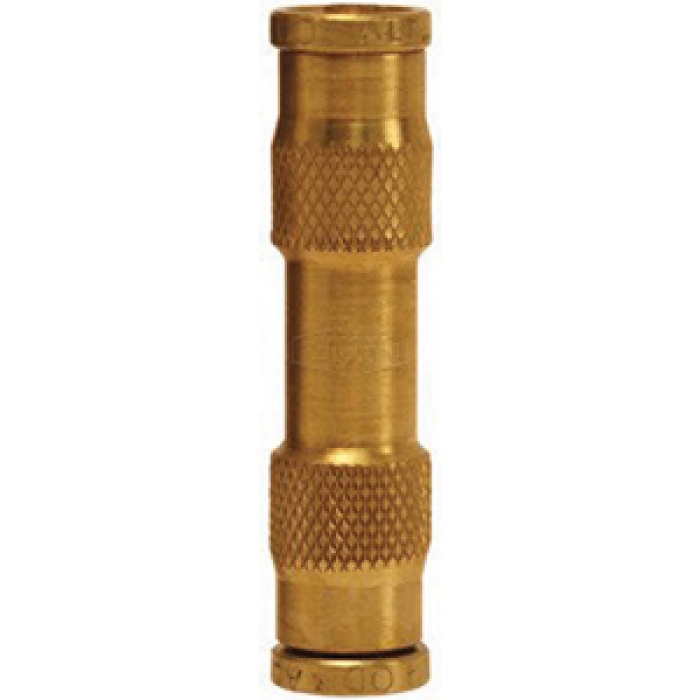

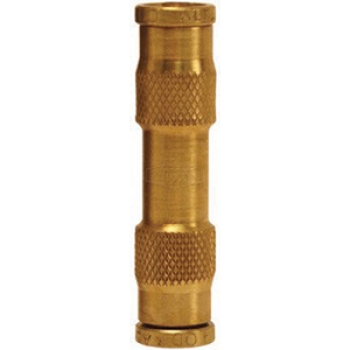

Dixon® Union Connector, Connection Type 1: Push-to-Connect, Connection Size 1: 1/4 in, Connection Type 2: Push-to-Connect, Connection Size 2: 1/4 in, Brass, Dimension Standards: SAE J1131, SAE J2494-1 and SAE J2494-3, -40 to 212 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Connector |
| Connection Size 2 | : | 1/4 in |
| Material | : | Brass |
| Dimension Standards | : | SAE J1131, SAE J2494-1 and SAE J2494-3 |
| Connection 1 | : | 1/4 in Push-to-Connect |
| Temperature Rating | : | -40 to 212 deg F |
| Connection Type 1 | : | Push-to-Connect |
| Connection Size 1 | : | 1/4 in |
| Connection 2 | : | 1/4 in Push-to-Connect |
| Connection Type 2 | : | Push-to-Connect |
- Buna-N seal material
- Fittings are suitable for use up to the maximum working pressure of the plastic tubing used
- Suitable for vacuum service
- CA360 brass
Catalog/Catalog Cut Sheet
