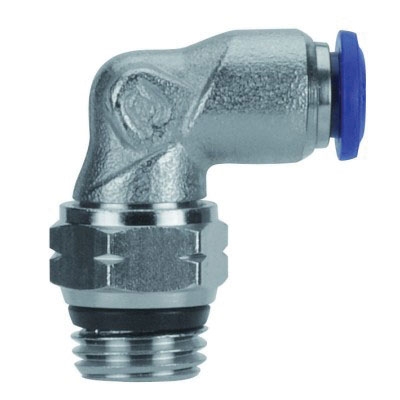

AIGNEP Swivel Elbow, 88 Series, Connection Type 1: Push-to-Connect, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/2 in, Hex Size: 22 mm, 290 psi, Brass, Finish: Nickel-Plated, 0 - 160 deg F, For Use With: Nylon, Polyethylene, Polyurethane, and Copper Tubing
| Fitting Type | : | Elbow |
| Gender 2 | : | Male |
| Connection Size 2 | : | 1/2 in |
| Series | : | 88 |
| Hex Size | : | 22 mm |
| Pressure Rating | : | 290 psi |
| Material | : | Brass |
| Finish | : | Nickel-Plated |
| Connection 1 | : | 1/2 in Push-to-Connect |
| Temperature Rating | : | 0 - 160 deg F |
| For Use With | : | Nylon, Polyethylene, Polyurethane, and Copper Tubing |
| Connection Type 1 | : | Push-to-Connect |
| Connection Size 1 | : | 1/2 in |
| Connection 2 | : | 1/2 in NPT |
| Connection Type 2 | : | NPTF |
- The 303 stainless steel gripper ensures a tight clamp for tubes of any material without damaging the tube's surface
- The secure connection between the tube and the fitting will hold up to severe conditions such as impact and vibrations
- The shape of the safety ring and the molded seal perfectly seal off the tube, creating a vacuum
- Our rotating swivel elbow fittings are equipped with a safety ring that enables the fitting to rotate without losing a tight seal
- Compatible media are compressed air, vacuum, water
Applications: Pneumatic automation, automotive, textile, packaging, compressed air circuit, vacuum
