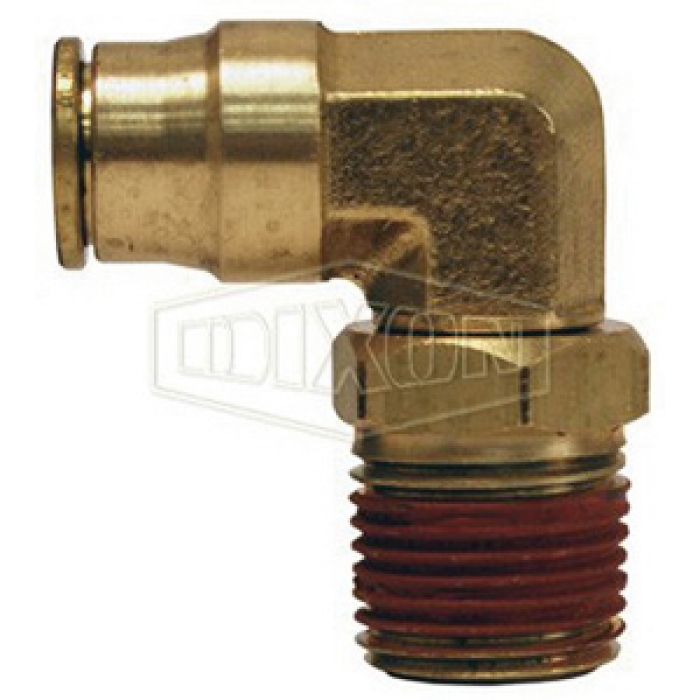

Dixon® Elbow, Connection Type 1: Push-to-Connect, Connection Size 1: 3/8 in, Connection Type 2: NPTF Swivel, Gender 2: Male, Connection Size 2: 1/4 in, Forged Brass, -10 to 200 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Elbow |
| Gender 2 | : | Male |
| Connection Size 2 | : | 1/4 in |
| Material | : | Forged Brass |
| Connection 1 | : | 3/8 in Push-to-Connect |
| Temperature Rating | : | -10 to 200 deg F |
| Connection Type 1 | : | Push-to-Connect |
| Connection Size 1 | : | 3/8 in |
| Connection 2 | : | 1/4 in NPT Swivel |
| Connection Type 2 | : | NPTF Swivel |
- Positive seal, no leaks, after tubing is inserted, seal is made
- Secure tube retention, pulling on tubing only serves to tighten the connection
- Full flow design, provides up to 60% more flow area than conventional fittings with internal tube supports
- Pre-applied PTFE-based pipe sealant on all male pipe threads saves customer additional labor
Applications: For vacuum service, up to the maximum working pressure of the plastic tubing used
Instructions:
- Saves up to 75% of assembly time versus the standard compression fittings.
- Quick connect, simply push tubing in, no tools required.
- Quick disconnect, hold two fingers on insert and pull tubing out, no tools required.
- Reusable, connect and disconnect numerous times.
Safety Notes:
- Fittings are suitable for use up to the maximum working pressure of the plastic tubing used.
