Danfoss Hansen OCP Open Rack V3 Blind Mate Quick Connector (BMQC) has been designed with OCP (Open Compute Project) community to set industry standard for thermal management application in data centers. This quick disconnect coupling is available in size 5mm and complies with OCP specification requirements. Danfoss BMQC offers a self-alignment feature to help connect in location with limited access or visibility and guarantees 100% helium-leak testing on every coupling.

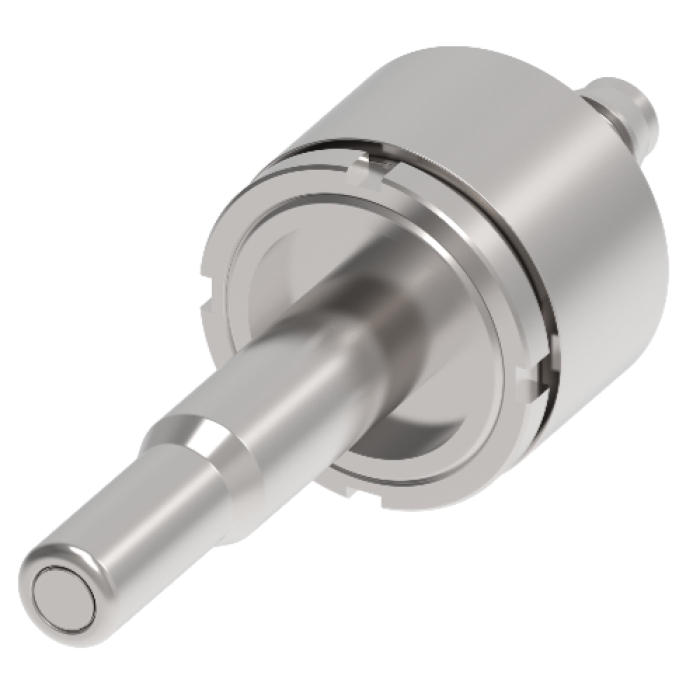

Danfoss Blind-Mate Quick Connector Plug, OCP ORV3 BMQC Series, 5 mm x 3/4 in Connection, Quick Disconnect x Hose Barbed, Material Construction: 303 Stainless Steel, 15 mm Hex, 1.57 in Dia x 4.55 in L, 35 psi Maximum Operating Pressure, -40 to 302 deg F Operating Temperature, 2-Way Valve, Straight, 1.6 gpm Flow Rate, EPDM Seal
- Designed together with OCP and complies with product specifications
- "Blind-connection" thanks to selfalignment feature with angular and radial compensation
- +/- 5 mm of pure radial offset between the socket axis and the plug cup axis
- +/- 2.7 deg of angular offset
- Push-to-connect design
- Direct connection between servers and manifolds
- Static force to connect is max. 99.3 N
- Static force to connect dry is max. 66.71 N
- Dynamic force to connect is max . 120 N max at 40 mm/sec
- Performance validated up-to 400 mm/sec
- High flow and reduced pressure drop for an improved system efficiency
- Flat-face dry break design to avoid spillage during connection/disconnection
- High reliability and 100% helium-leak tested
- Danfoss unique patented centering mechanism. This allows end-user to use different types of hoses and a low force to connect
- Standard material: 303 stainless steel for excellent corrosion resistance
- Standard seal material: EPDM for excellent fluid compatibility

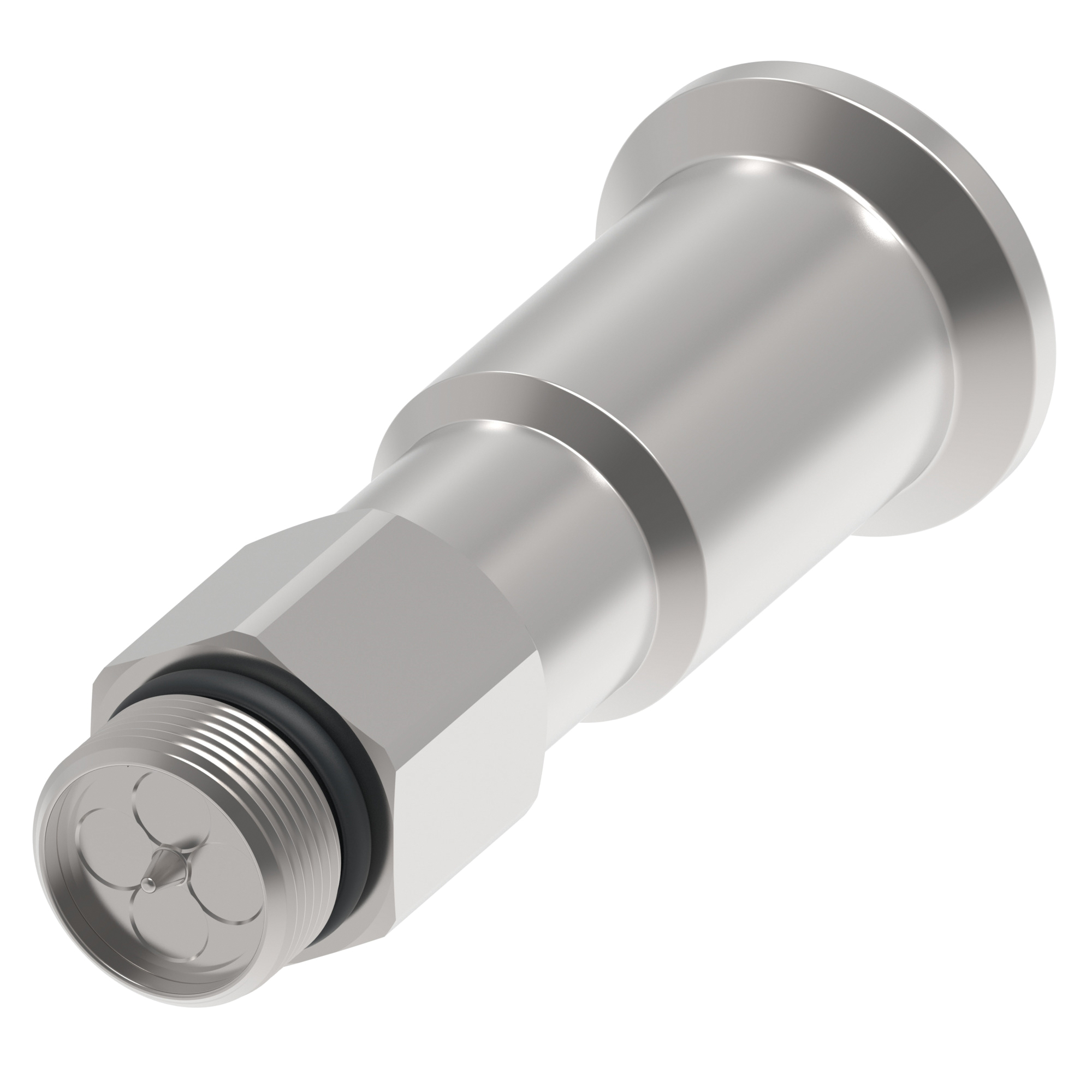

- Terminal ends are ORB for socket part and hose tail for plug part
- Operating temperature: -40 deg C to +150 deg C
- Working pressure: 2.4 bar (OCP is checking to increase the pressure - work is in progress)
