410-356-0003
.png)

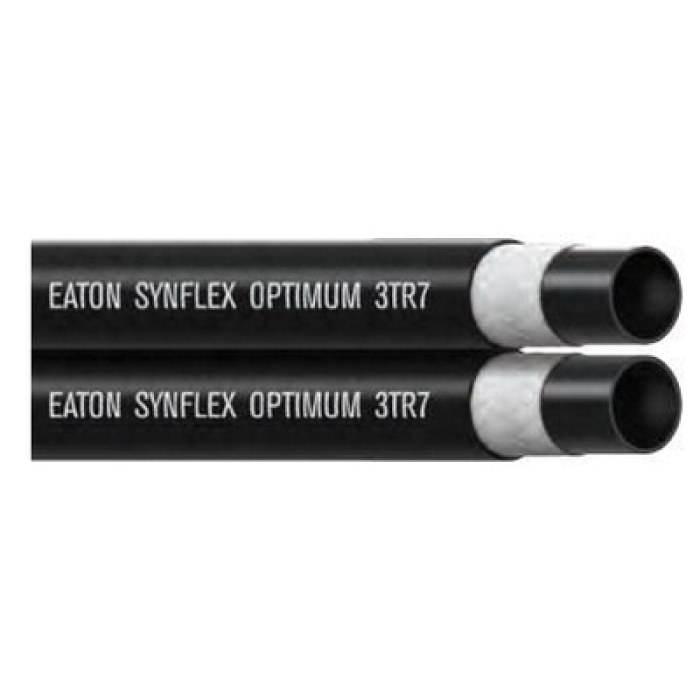

Aeroquip® Hydraulic Hose, 3TR7 Series, Nominal Size: 0.38 in, Dash Size: 06, 0.65 in OD, 0.38 in ID, 250 ft Length, 2300 psi, SAE Rating: SAE 100R7, Nylon, Polyurethane Cover, Construction: 1-Ply Braid, Black, 2 in Bend Radius, Resistance Properties: Abrasion, Chemical, Ozone, UV, -40 deg F Low, 212 deg F High
| Product Type | : | Hydraulic Hose |
| SAE Rating | : | SAE 100R7 |
| Material | : | Nylon |
| Cover Material | : | Polyurethane |
| Construction | : | 1-Ply Braid |
| Color | : | Black |
| Length | : | 250 ft |
| Series | : | 3TR7 |
| Bend Radius | : | 2 in |
| Resistance Properties | : | Abrasion, Chemical, Ozone, UV |
| Nominal Size | : | 0.38 in |
| Dash Size | : | 06 |
| Inside Diameter | : | 0.38 in |
| Outside Diameter | : | 0.65 in |
| Temperature Low | : | -40 deg F |
| Temperature High | : | 212 deg F |
| Pressure Rating | : | 2300 psi |
Danfoss Synflex® Optimum thermoplastic hydraulic hoses and fittings empower OEMs to reimagine design. Our system engineered portfolio offers streamlined product configurations that make it easy-to find the perfect combination for every application. And our commitment to innovation includes the design and technical support needed to develop more efficient, safe and productive systems.
- The thermoplastic polyurethane and polyester outer cover resists ozone, ultraviolent light and aging
- Danfoss Synflex® Optimum 100R7 and 100R8 hose covers were formulated to require 50% less routing force reducing the chance of kinking
- Ability to mold into configurations that match system design
- The new TPU and polyester cover increases abrasion-resistant by 10%
- Lift and handle heavy loads with hose power
- Thermoplastic composition paired with nylon lining prevents absorption of most oils and hydraulic fluids
- Lightweight hose design drives performance efficiencies, reducing vehicle power requirements
- Synthetic reinforced thermoplastic hoses are about 2x lighter then equivalent wire braided rubber hose
- Synflex® thermoplastic hoses can be permanently joined without the use of any mechanical devices
- Thermoplastic hose will not degrade or create contaminants in filters and valves to help you maintain a clean system
- Special reinforcements on the thermoplastic hoses help reduce machine noise
Applications: General construction, general hydraulics, lubrication systems, marine steering, utility vehicles and pickers, rescue apparatus and tools, water jetter drain/sewer, agriculture, horticulture, chemical transfer, foam systems, food processing, forestry delimber, forklifts and freezer applications
