Aeroquip® 2580-24 AER 2580-24 | Tipco Technologies
Aeroquip® 2580-24
Send Print
  1. pin-int

Aeroquip® 2580-24

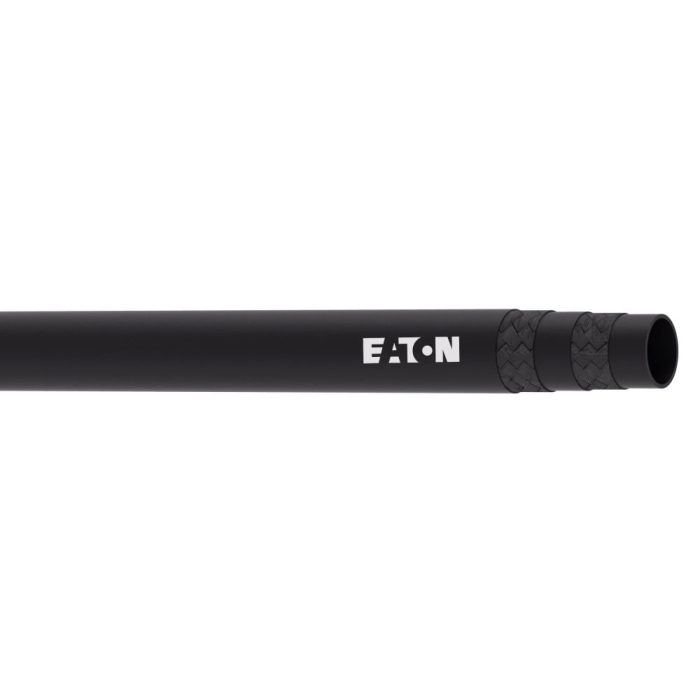

Aeroquip® 2580 Synthetic Rubber Medium-Pressure Marine Hose, 1.38 in, 1 ft L, 400 psi

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 2580-24
  • MPN: 2580-24
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Medium-Pressure Marine Hose, 2580 Series, Nominal Size: 1.38 in, Dash Size: 24, 1.75 in OD, 1.38 in ID, 1 ft Length, 400 psi, Synthetic Rubber, Synthetic Rubber Cover, Construction: Double Textile Braid, 10-1/2 in Bend Radius, Resistance Properties: Abrasion, -40 deg F Low, 212 deg F High

Product Type      :      Marine Hose
Series      :      2580
Nominal Size      :      1.38 in
Dash Size      :      24
Outside Diameter      :      1.75 in
Inside Diameter      :      1.38 in
Length      :      1 ft
Pressure Rating      :      400 psi
Material      :      Synthetic Rubber
Cover Material      :      Synthetic Rubber
Construction      :      Double Textile Braid
Bend Radius      :      10-1/2 in
Resistance Properties      :      Abrasion
Temperature Low      :      -40 deg F
Temperature High      :      212 deg F

Applications: For gasoline, fuel oil and water
