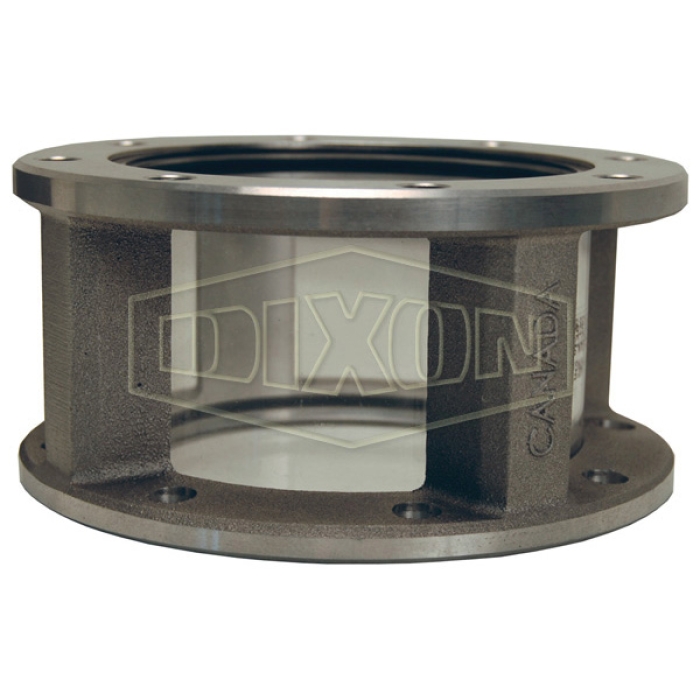

Dixon® TTMA Flanged Sight Flow Indicator, Connection Size: 4 in, 150 psi, Baylast Seal, Aluminum Indicator, For Use With: Gasoline and Diesel, up to E100 and B100 Biofuels
California residents see Prop 65 WARNINGS
| Product Type | : | Sight Flow Indicator |
| Seal Material | : | Baylast |
| Indicator Material | : | Aluminum |
| For Use With | : | Gasoline and Diesel, up to E100 and B100 Biofuels |
| Connection Size | : | 4 in |
| Pressure Rating | : | 150 psi |
- Allows for visual identification of fuel grade prior to opening the valve
- Works with tank truck flanged butterfly valves found on gasoline trucks
- Larger ID 4-3/8 in flow indicator allows tank truck flanged butterfly valves to connect to either end of the indicator
- Durable cast aluminum housing
- Baylast™ O-ring
- Steel retainer ring
Safety Notes:
- Due to the proprietary blending of petroleum products, Dixon® recommends that the thermoplastic tubing and the gaskets be immersion tested in the product to be handled to ensure compatibility.
- Not compatible with crude oil.
- Maximum flange bolt torque is 200 in-lb (inch pounds).
Specification Sheet
