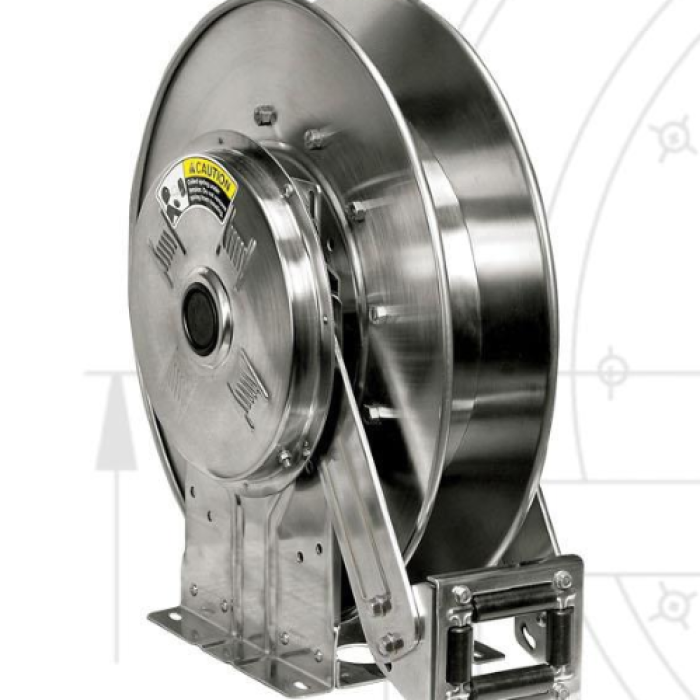

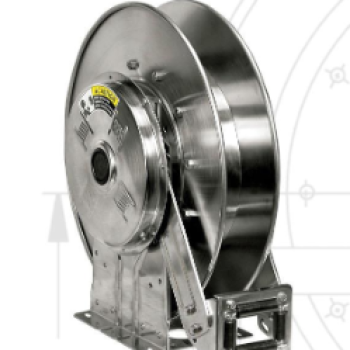

Hannay Reels® SR Hose Reel, Series: SSN800, Inlet Size: 1 in, Connection Type: FPT, 1 in Hose Inside Diameter, 25 ft Length Hose, 1000 psi, Stainless Steel, Winding Method: Spring Rewind, 16.12 in Width, 24 in Height, Dimensions: 24 in L, -65 to 250 deg F
| Temperature Rating | : | -65 to 250 deg F |
| Height | : | 24 in |
| Winding Method | : | Spring Rewind |
| Pressure Rating | : | 1000 psi |
| Hose Inside Diameter | : | 1 in |
| Hose Length | : | 25 ft |
| Dimensions | : | 24 in L |
| Product Type | : | Hose Reel |
| Series | : | SSN800 |
| Inlet Size | : | 1 in |
| Material | : | Stainless Steel |
| Width | : | 16.12 in |
| Connection Type | : | FPT |
- Standard N Series has a narrow frame and compact mounting base
- Non-sparking ratchet assembly
- Declutching arbor to prevent damage from reverse winding
- Standard inlet - 90 deg balanced pressure swivel joint, 1 in female NPT threads
- Standard outlet - 1 in FNPT threads
- Four-way roller assembly
- Swivel joint is standard on the right
- SR roller positions: swivel joint is standard on the right, TR roller positions: swivel joint is standard on the left
Applications: Dairy, caustic materials, air, water, chemical transfer, food transfer
