Hannay Reels® N716-16-17-10.5C
Send Print
  1. pin-int

Hannay Reels® N716-16-17-10.5C

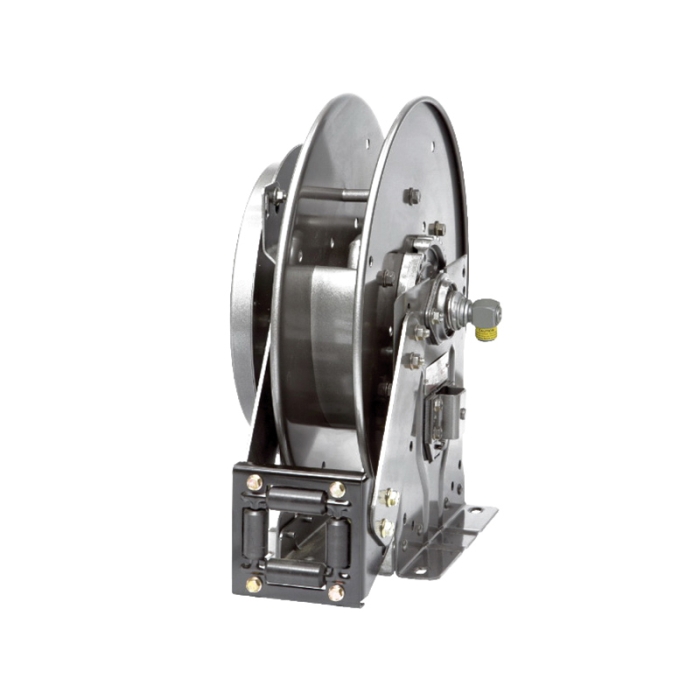

Hannay Reels® N700 Hose Reel, 1/2 in ID x 35 ft, 3000 psi

  • Manufacturers: Hannay Reels
  • Brand Name: Hannay Reels®
  • Tipco Part No: HAN 47-10
  • MPN: N716-16-17-10.5C
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Hannay Reels® Hose Reel, N700 Series, 35 ft Length Hose, 1/2 in Hose Inside Diameter, Inlet Size: 1/2 in Swivel, Outlet Size: 1/2 in Swivel, Winding Method: Spring Rewind, -60 to 250 deg F, 3000 psi, Dimensions: 18-1/2 in L x 11-1/4 in W x 17 in H

Temperature Rating      :      -60 to 250 deg F
Winding Method      :      Spring Rewind
Pressure Rating      :      3000 psi
Hose Inside Diameter      :      1/2 in
Hose Length      :      35 ft
Dimensions      :      18-1/2 in L x 11-1/4 in W x 17 in H
Product Type      :      Hose Reel
Series      :      N700
Inlet Size      :      1/2 in Swivel
  • Standard N Series has a narrow frame and compact mounting base
  • Non-sparking ratchet assembly
  • Declutching arbor to prevent damage from reverse winding

Applications: Lubrication, air, water, steam, assembly operations, washdown, air tools, high pressure, general Industrial applications
