Dixon® DL275

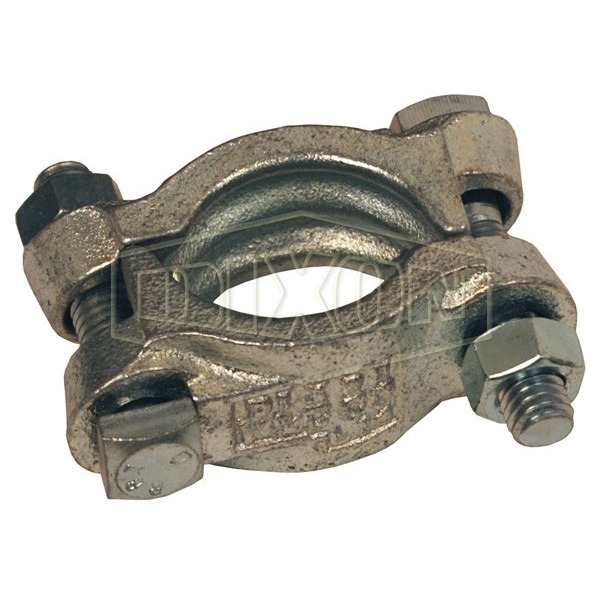

Dixon® DL275 Plated Iron 2-Bolt Clamp, 2-32/64 - 2-48/64 in, 4-15/32 in W, 1-3/16 in Thick

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN DL275
  • MPN: DL275
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® 2-Bolt Clamp, 2-48/64 in Maximum Clamp Diameter, 2-32/64 in Minimum Clamp Diameter, Locking Style: Bolt, Torque Rating: 40 ft-lb, Iron, Finish: Plated, 4-15/32 in Width, 1-3/16 in Thickness

California residents see Prop 65 WARNINGS

Product Type      :      Bolt Clamp
Finish      :      Plated
Width      :      4-15/32 in
Thickness      :      1-3/16 in
Maximum Clamp Diameter      :      2-48/64 in
Minimum Clamp Diameter      :      2-32/64 in
Locking Style      :      Bolt
Torque Rating      :      40 ft-lb
Material      :      Iron
  • Inner surface has dual gripping ridges
  • Bolt lugs are reinforced to prevent bending out of alignment

Safety Notes:

  • The use of lubricant on bolts will adversely effect clamp performance.
  • Consult Dixon® when using double bolt clamps on helical wire hose.
  • Measure hose OD accurately before ordering clamps.
  • Torque values for clamps are based on dry bolts.
