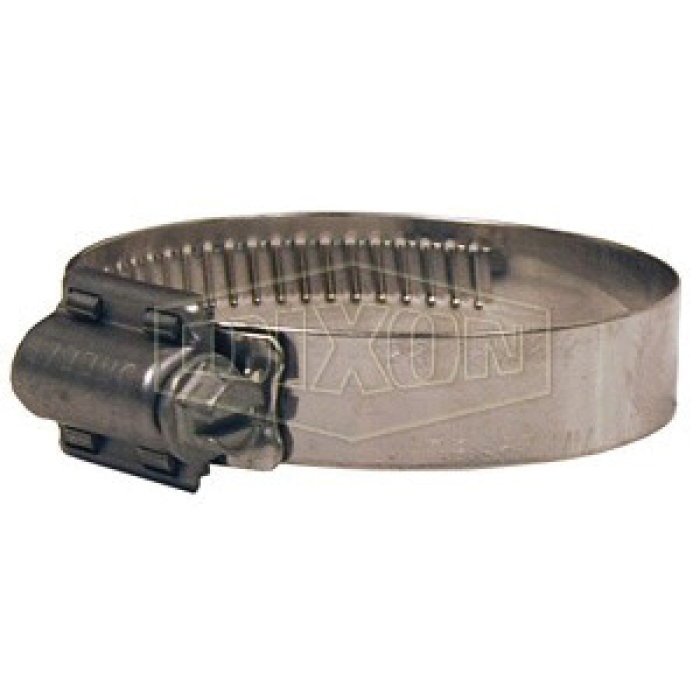

Dixon® HTM Hi Torque Worm Gear Clamp, HP Series, 6-8/64 in Maximum Clamp Diameter, 4 in Minimum Clamp Diameter, Locking Style: Screw Lock, Torque Rating: 90 in-lb, 300 Stainless Steel, 5/8 in Width
California residents see Prop 65 WARNINGS
| Product Type | : | Worm Gear Clamp |
| Width | : | 5/8 in |
| Series | : | HP |
| Maximum Clamp Diameter | : | 6-8/64 in |
| Minimum Clamp Diameter | : | 4 in |
| Locking Style | : | Screw Lock |
| Torque Rating | : | 90 in-lb |
| Material | : | 300 Stainless Steel |
- Withstands more than three times the SAE torque requirements for worm-driven clamps
- Eight screw threads are engaged in the band simultaneously for incredible torqueing drive (over 90 in-lb), sealing pressure and vibration resistance
- 410 stainless steel screw, slotted hex head screw design
- 300 Series half hard stainless steel
