H520 fittings are design for internal expansion only
Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
Applications: For discharge and suction service, transfer of fuel to airplanes, homes, ships and more
Safety Notes: Do not interchange with other manufacturer's fittings.
Designed for internal expansion only.

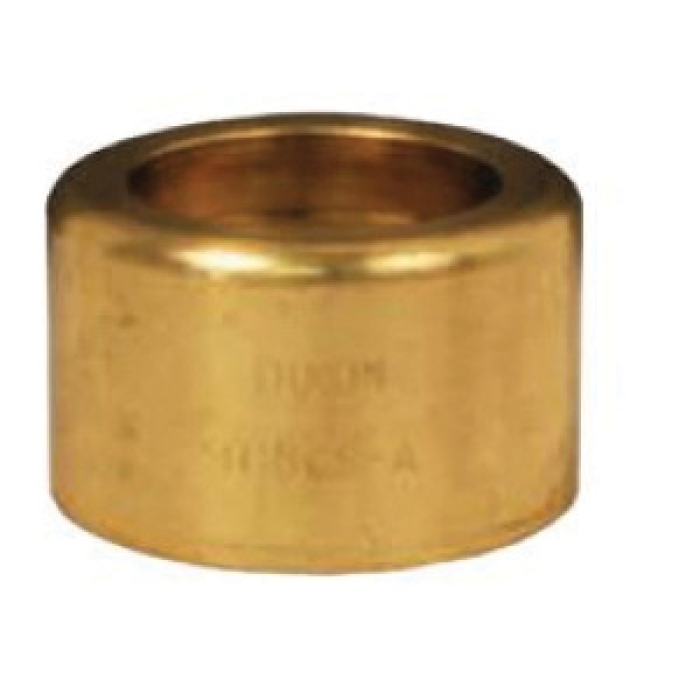

Dixon® Holedall stems and ferrules are specifically designed to be used together as a coupling system.
Do not use a wrench or vice on ferrule.
Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
Consult Dixon® for recommendations on usage.
Strict adherence to ferrule OD range (internally expanded) for each hose end to be assembled is essential for satisfactory performance.
Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting.
The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
Media being transported through the hose should be compatible with the stem material.
Compatibility of ferrule material with the environment in which it will be used is recommended.
Consult the Compatibility Chart or the Dixon® factory for material compatibility.
For applications other than the ones list, please consult Dixon®.
