Dixon® BBV150DTW DXN BBV150DTW | Tipco Technologies
Dixon® BBV150DTW
Send Print
  1. pin-int

Dixon® BBV150DTW

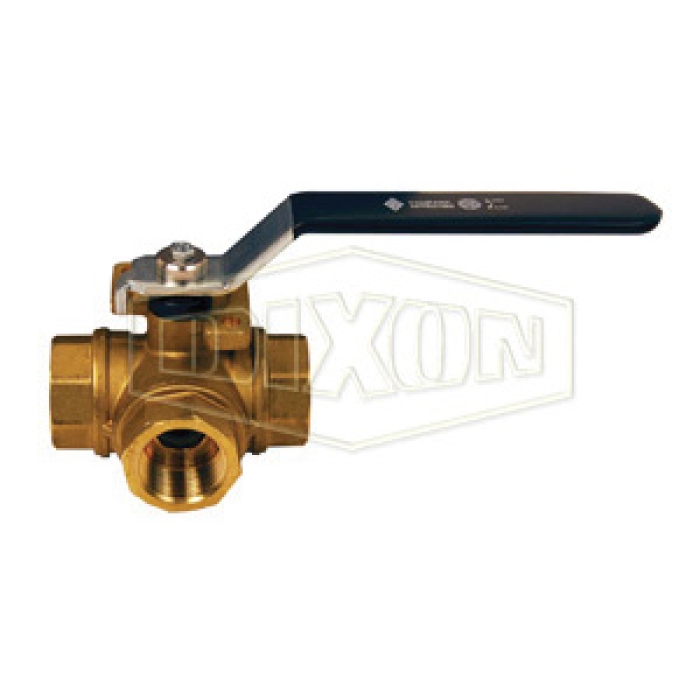

Dixon® BBV150DTW Brass 3-Way Diverting Standard-Port Ball Valve, 1-1/2 in FPT, 400 psi

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN BBV150DTW
  • MPN: BBV150DTW
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® 3-Way Diverting Standard-Port Ball Valve, Nominal Size: 1-1/2 in, Connection Type: FPT, Actuator Type: 1/4-Turn Handle, Brass, PTFE Trim, PTFE Seal, 4.86 in Length, 366 deg F, 400 psi

California residents see Prop 65 WARNINGS

Product Type      :      Ball Valve
Length      :      4.86 in
Temperature Rating      :      366 deg F
Pressure Rating      :      400 psi
Nominal Size      :      1-1/2 in
Connection Type      :      FPT
Actuator Type      :      1/4-Turn Handle
Material      :      Brass
Trim Material      :      PTFE
Seal Material      :      PTFE
  • T flow pattern
  • Blowout-proof stem design
  • Adjustable stem packing
  • Chrome-plated brass ball
  • PTFE seats, seals and thrust washers
  • 1/4 turn handle can be adjusted to any orientation, notches on the valve stem reflect the three openings on the ball
