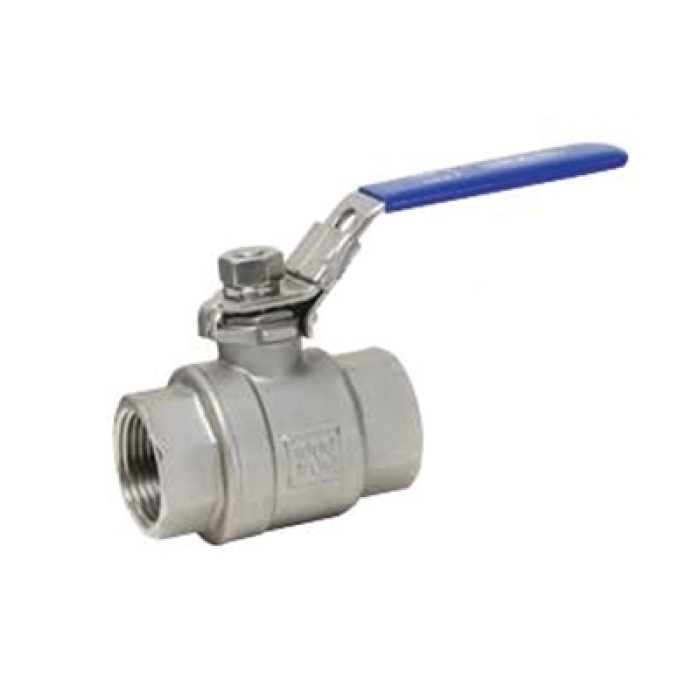

Dixon® Lockable Full-Port Ball Valve, Nominal Size: 3/8 in, Connection Type: FPT, Actuator Type: Locking Handle, 316 Stainless Steel, RPTFE Trim, -20 to 356 deg F, 1000 psi
California residents see Prop 65 WARNINGS
| Product Type | : | Ball Valve |
| Temperature Rating | : | -20 to 356 deg F |
| Pressure Rating | : | 1000 psi |
| Nominal Size | : | 3/8 in |
| Connection Type | : | FPT |
| Actuator Type | : | Locking Handle |
| Material | : | 316 Stainless Steel |
| Trim Material | : | RPTFE |
- Blowout-proof stem design
- 316 stainless steel body, ball and stem
- RPTFE seat, joint gasket and thrust washer
- Plastic cover on handle
Applications: For use in water, oil and gas applications
Safety Notes:
- Not recommended as a throttling valve.
Catalog/Catalog Cut Sheet
