Sharpe® 0160WDNL040 SMI 0160WDNL040 | Tipco Technologies
Sharpe® 0160WDNL040
Send Print
  1. pin-int

Sharpe® 0160WDNL040

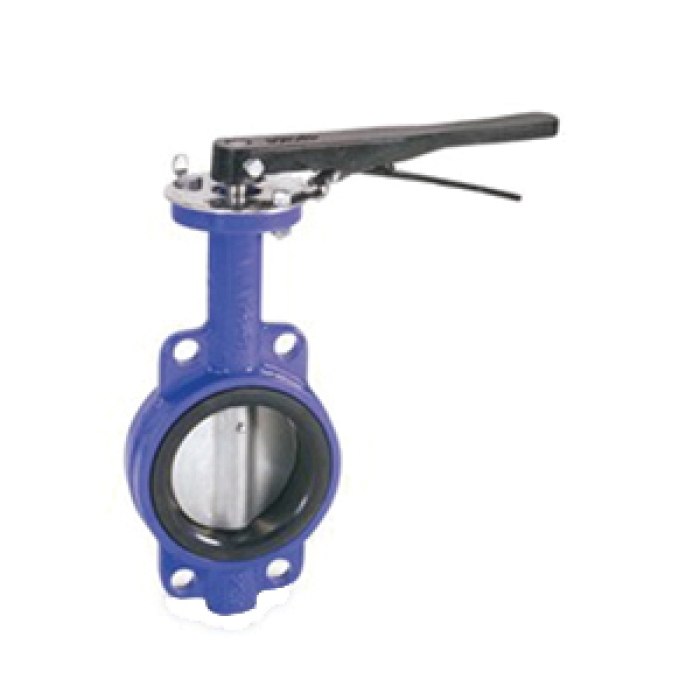

Sharpe® 0160 Epoxy-Coated Cast Iron Wafer Style Butterfly Valve, 4 in, 200 psi

  • Manufacturers: Smith-Cooper International
  • Brand Name: Sharpe®
  • Tipco Part No: SMI 0160WDNL040
  • MPN: 0160WDNL040
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Sharpe® Wafer Style Butterfly Valve, 0160 Series, Nominal Size: 4 in, Actuator Type: 10-Position Lever, Cast Iron, Finish: Epoxy-Coated, 13.7 in Length, 180 deg F, 200 psi, For Use With: Class 125 or 150 Flanges

Product Type      :      Butterfly Valve
Finish      :      Epoxy-Coated
Length      :      13.7 in
Temperature Rating      :      180 deg F
Pressure Rating      :      200 psi
For Use With      :      Class 125 or 150 Flanges
Series      :      0160
Nominal Size      :      4 in
Actuator Type      :      10-Position Lever
Material      :      Cast Iron
  • Phenolic backed cartridge seat
  • Fusion bonded epoxy coating
  • Buna-N seal and nickel-plated ductile iron disc
